Waterproof Outdoor IP66 Power Street Light Solar Hybrid

Short Description:

Hybrid solar street lights refer to the use of solar power as the main energy source, and at the same time complementary with mains power, to ensure that in bad weather or solar panels can not work properly, can still ensure the normal use of street lights.


  • Branding: Beihai Power
  • Model Number: BH-Solar light
  • Appliance: Garden
  • Input Voltage (volts): AC 100~220V
  • Lamp luminous efficacy (lm/w): 170~180
  • Product Detail

    Product Tags

    Product Description

    Hybrid solar street lights refer to the use of solar power as the main energy source, and at the same time complementary with mains power, to ensure that in bad weather or solar panels can not work properly, can still ensure the normal use of street lights. Hybrid solar street lights are usually composed of solar panels, batteries, LED lights, controllers and mains chargers. Solar panels convert solar energy into electricity, which is stored in batteries for use at night. The controller can adjust light brightness and light duration to better manage energy consumption and the life of the luminaire. When the solar panel cannot meet the lighting needs of the street lamp, the mains charger will automatically start and charge the battery through the mains to ensure the normal use of the street lamp.

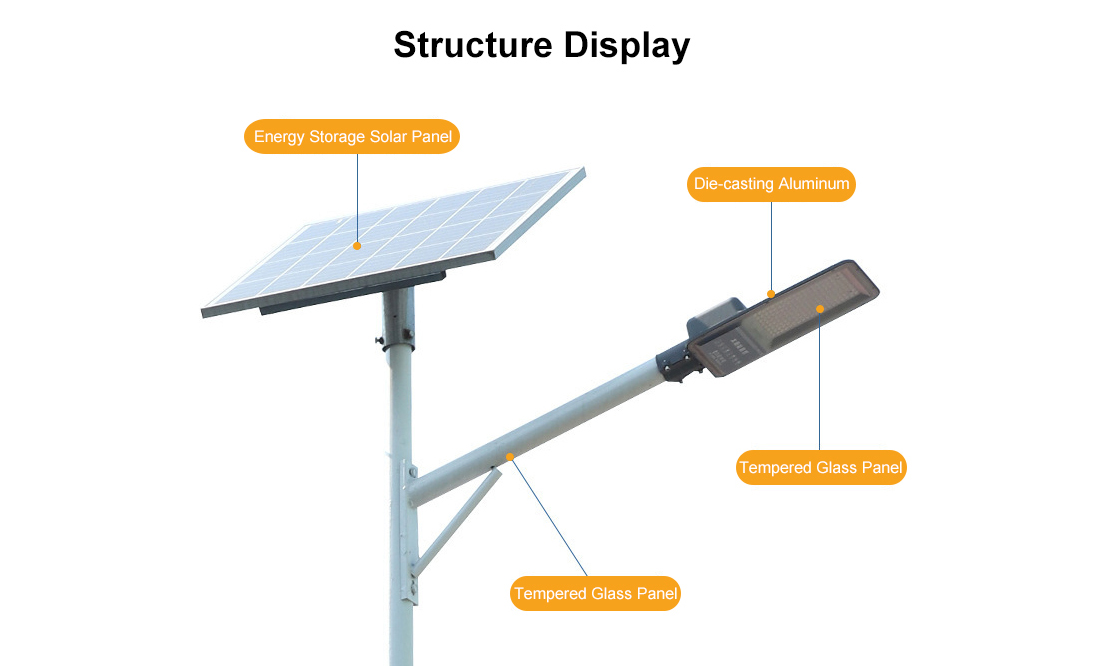

    Structure DisplayProduct Parameters

    Item
    20W
    30W
    40W
    LED Effeciency
    170~180lm/w
    LED Brand
    USA CREE LED
    AC input
    100~220V
    PF
    0.9
    Anti-surge
    4KV
    Beam Angle
    TYPE II WIDE, 60*165D
    CCT
    3000K/4000K/6000K
    Solar Panel
    POLY 40W
    POLY 60W
    POLY 70W
    Battery
    LIFEPO4 12.8V 230.4WH
    LIFEPO4 12.8V 307.2WH
    LIFEPO4 12.8V 350.4WH
    Charging Time
    5-8hours (sunny day)
    Discharging Time
    min 12 hours per night
    Rainy/ Cloudy back up
    3-5 days
    Controller
    MPPT Smart controller
    Automomy
    Over 24 hours at full charge
    Operration
    Time slot programs + dusk sensor
    Programme Mode
    brightness 100% * 4hrs+70% * 2hrs+50% * 6hrs till dawn off
    IP Rating
    IP66
    Lamp Material
    DIE-CASTING ALUMINUM
    Installation Fits
     5~7m

    Product Details

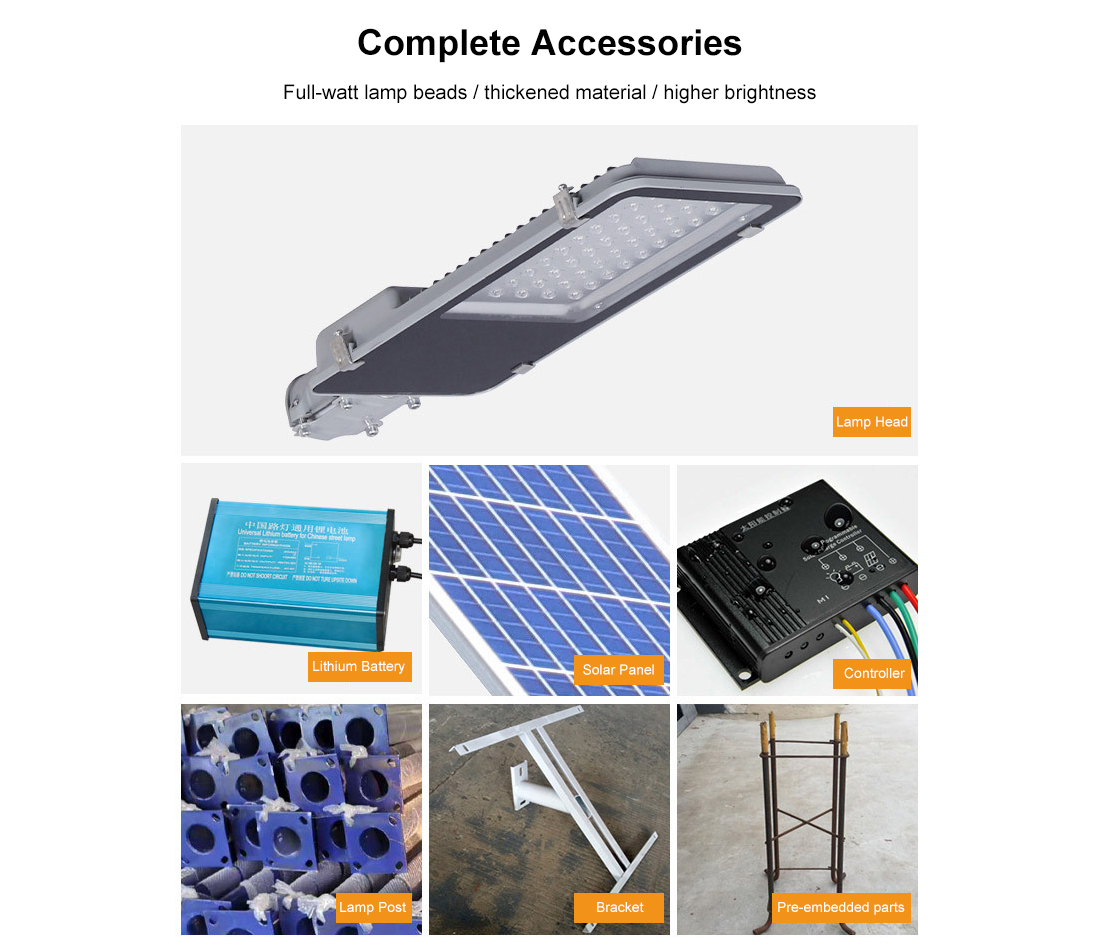

    Complete Accessories

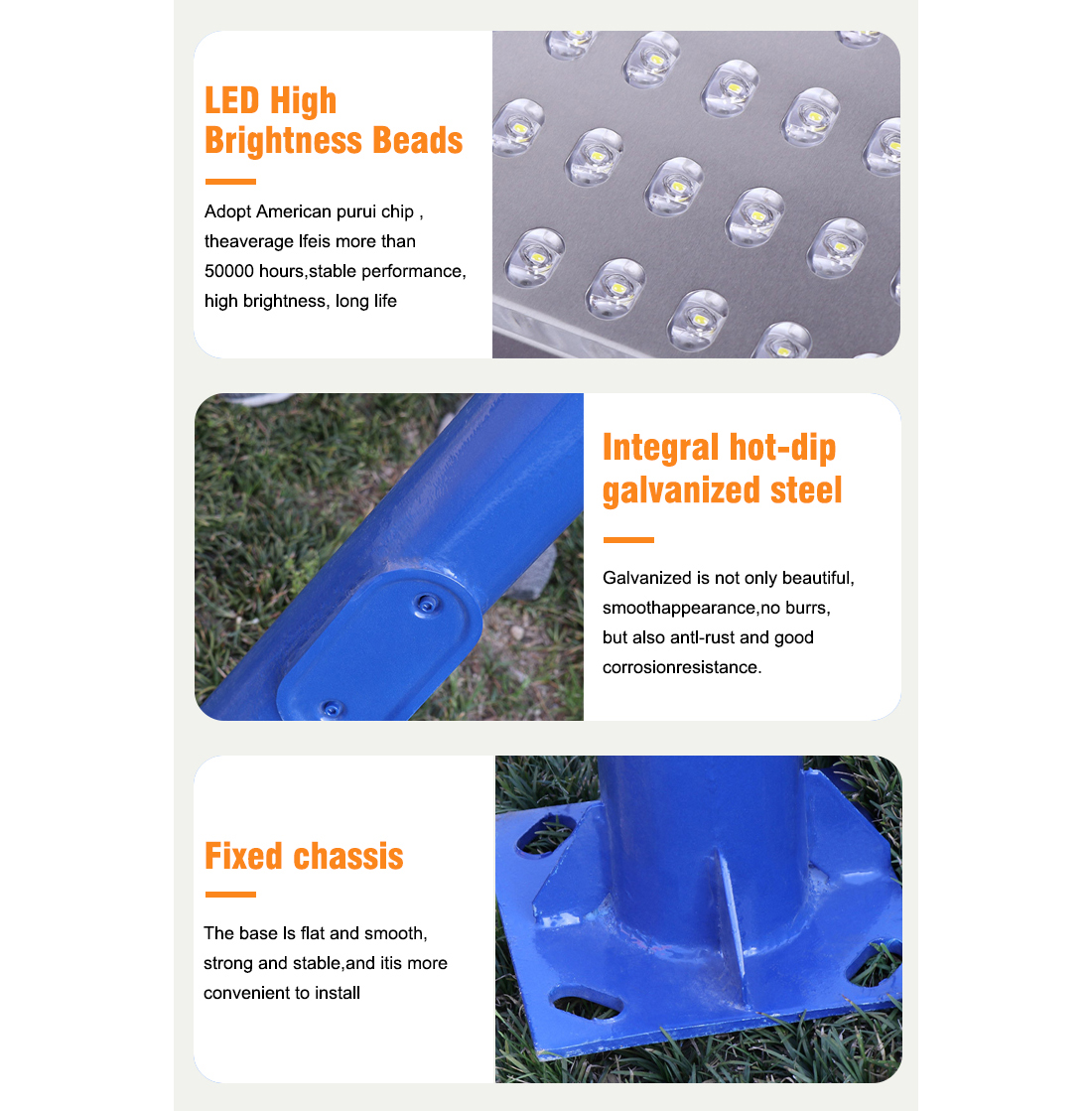

    Details show

    advantage

    Application

    The application range of mains complementary solar street lights is very wide, which is applied in urban roads, rural roads, parks, squares, mines, docks and parking lots.

    appliance

    Company Profile

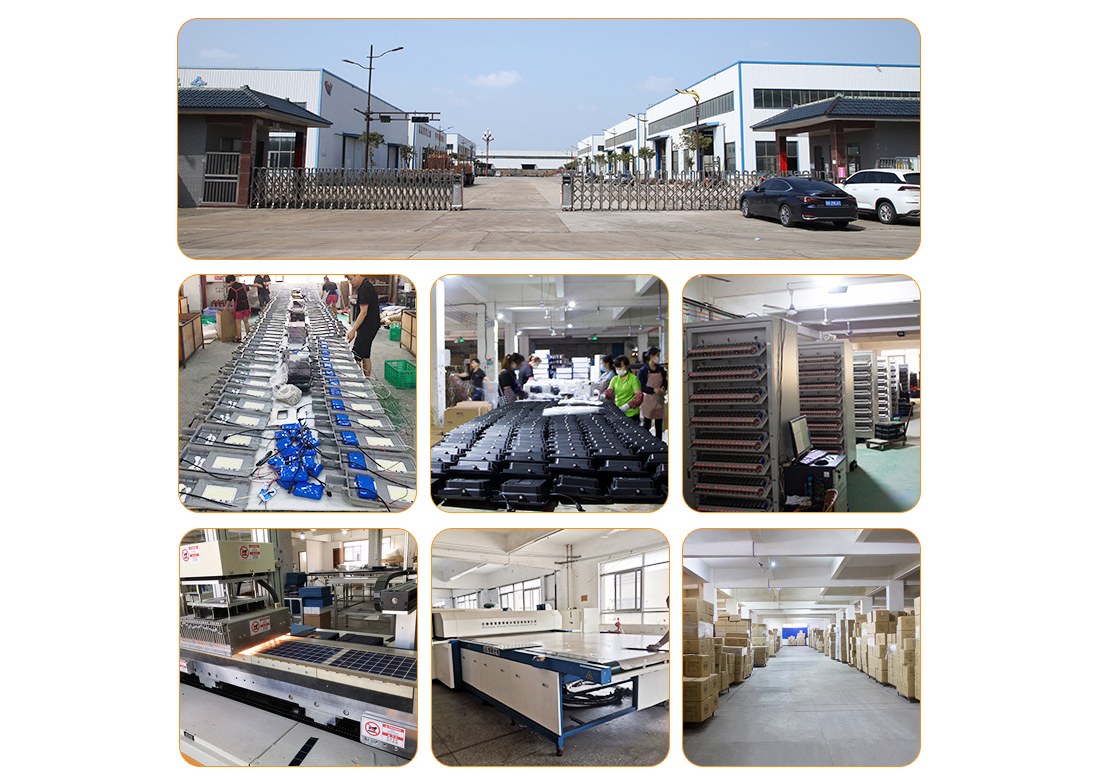

    workshop
