Wall-mounted Type2 7KW EV Charger AC Charing Station For Home

Short Description:

The principle of using 7KW AC charging pile is mainly based on electric energy conversion and transmission technology. Specifically, this kind of charging pile inputs household 220V AC power into the interior of the charging pile, and through internal rectification, filtering and other processing, converts the AC power into DC power suitable for charging electric vehicles. Then, through the charging ports (including plugs and sockets) of the charging pile, the electric energy is transmitted to the battery of the electric vehicle, thus realising the charging of the electric vehicle.

Output Voltage Range (V): 220

Output power (KW): 7

Maximum Output Current (A): 32

level of protection: IP65

heat dissipation control: natural cooling

Send email to us

Product Detail

Product Tags

Product Description:

In this process, the control module of the charging pile plays a key role. It is responsible for monitoring and controlling the operating status of the charging pile, communicating and interacting with the electric vehicle, and adjusting the output parameters, such as voltage and current, according to the charging demand of the electric vehicle. At the same time, the control module also monitors various parameters in the charging process in real time, such as battery temperature, charging current, charging voltage, etc., to ensure the safety and reliability of the charging process.

advantage-

Product Parameters:

7KW AC Single port (wall-mounted and floor-mounted) charging pile
Equipment Models	BHAC-7KW
Technical parameters
AC input	Voltage range (V)	220±15%
AC input	Frequency range (Hz)	45~66
AC output	Voltage range (V)	220
	Output Power (KW)	7
	Maximum current (A)	32
	Charging interface	1
Configure Protection Information	Operation Instruction	Power,Charge,Fault
	Man-machine display	No/4.3-inch display
	Charging operation	Swipe the card or scan the code
	Metering mode	Hourly rate
	Communication	Ethernet(Standard Communication Protocol)
	Heat dissipation control	Natural Cooling
	Protection level	IP65
	Leakage protection(mA)	30
Equipment Other Information	Reliability (MTBF)	50000
	Size (WDH) mm	2701101365 (Landing)270110400 (Wall mounted)
	Installation mode	Landing typeWall mounted type
	Routing mode	Up (down) into line
Worksing Environment	Altitude (m)	≤2000
	Operating temperature(℃)	-20~50
	Storage temperature(℃)	-40~70
	Average relative humidity	5%~95%
Optional	O4GWireless CommunicationO Charging gun 5m Or Floor mounting bracket

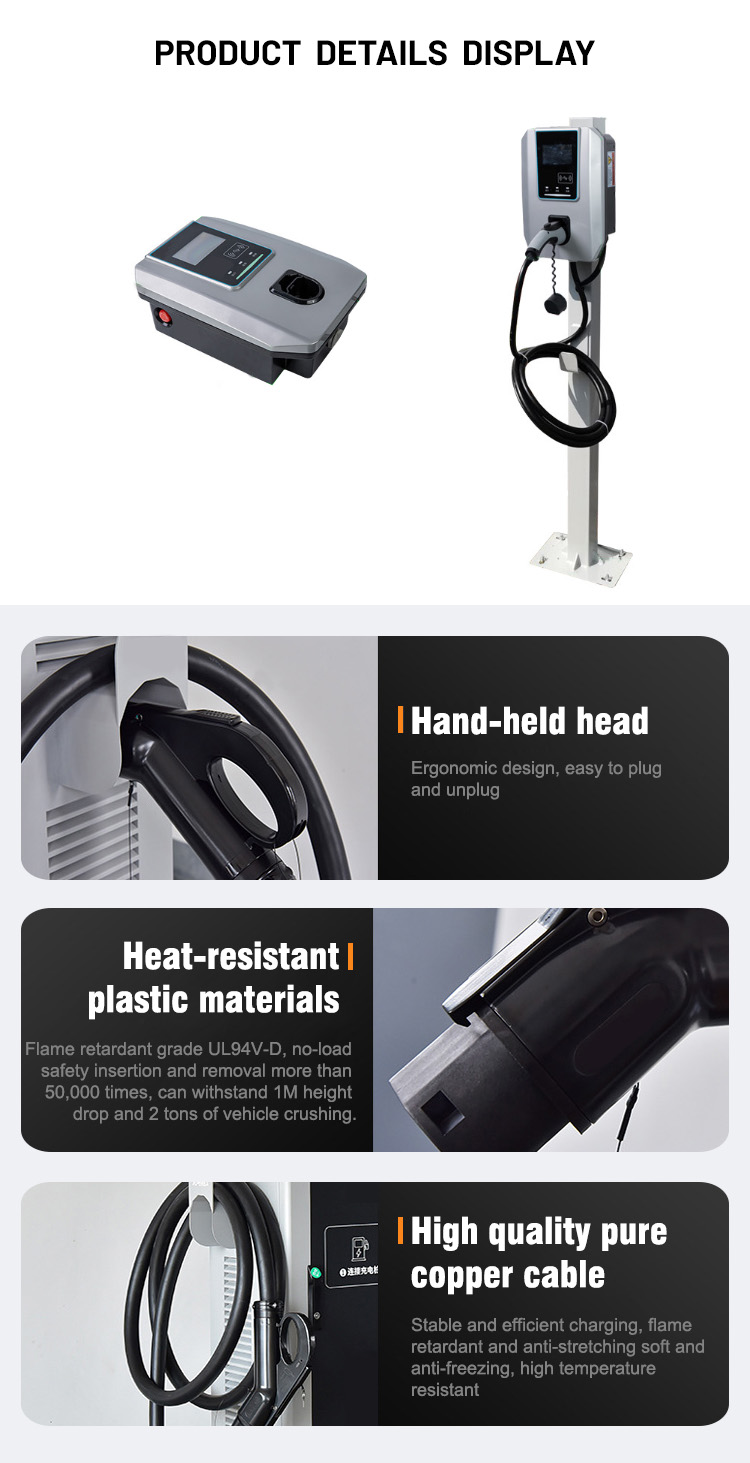

Product Feature:

Application:

Ac charging piles are widely used in homes, offices, public parking lots, urban roads and other places, and can provide convenient and fast charging services for electric vehicles. With the popularization of electric vehicles and the continuous development of technology, the application range of AC charging piles will gradually expand.
