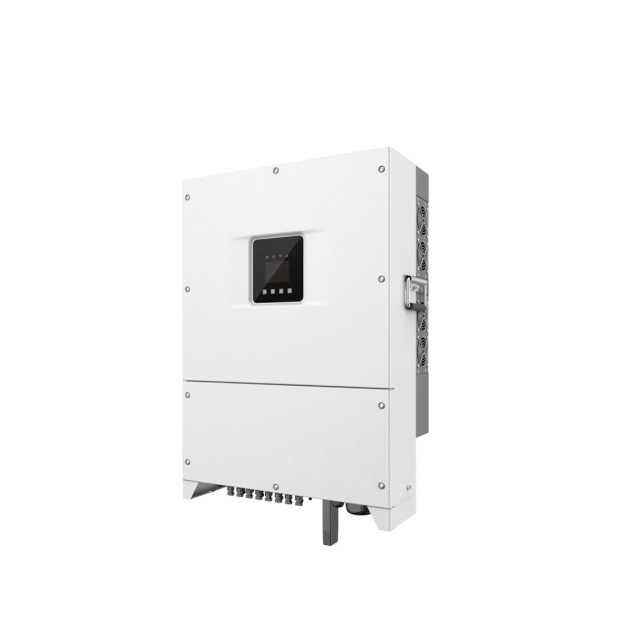

Three Phase Solar Power Hybrid Inverter Storage

Short Description:

Hybrid grid inverter is a key part of the energy storage solar system, which converts the direct current of solar modules into alternating current.

Send email to us

Product Detail

Product Tags

Description

Hybrid grid inverter is a key part of the energy storage solar system, which converts the direct current of solar modules into alternating current. It has its own charger, which can be directly connected to lead-acid batteries and lithium iron phosphate batteries, ensuring the system safe and reliable.

Product features

100% unbalanced output, each phase; Max. output up to 50% rated power;

DC couple and AC couple to retrofit existing solar system;

Max. 16 pcs parallel. Frequency droop control;

Max. charging/discharging current of 240A;

High voltage battery, higher efficiency;

6 time periods for battery charging/discharging;

Support storing energy from diesel generator;

Specifications

Model	BH 10KW-HY-48	BH 12KW-HY-48
Battery Type	lithium ion/lead acid battery
Battery Voltage Range	40-60V
MAX Charging Current	210A	240A
MAX Discharger Current	210A	240A
Charging Curve	3Stages/Equalization
External Temperature Sensor	YES
Charging strategy for Lithium battery	Self adaptation to BMS
PV Input Data
MAX PV Input Power	13000W	15600W
MAX PV Input Voltage	800VDC
MPPT Voltage Range	200-650VDC
PV Input Current	26A+13A
NO. of MPPT Trackers	2
No. of PV Strings per MPPT	2+1
AC Output Data
Rated AC Output Power and UPS power	10000W	12000W
MAX AC Output Power	11000W	13200W
Peak Power of OFF GRID	2TIMES of Rated Power, 10S.
AC Output Rated Current	15A	18A
Max. Continuous AC Passthrough (A)	50A
Output Frequency and Voltage	50/60Hz; 230/400Vac (Three phase)
Current Harmonic Distortion	THD<3% (Linear load<1.5%)
Efficiency
MAX Efficiency	97.6%
MPPT Efficiency	99.9%
Protection
PV Input Lightning Protection	Integrated
Anti-islanding Protection	Integrated
PV String Input Reverse Polarity Protection	Integrated
Output Over Current Protection	Integrated
Output Over Voltage Protection	Integrated
Surge protection	DC Type II / AC Type II
Certiffcations and Standards
Grid Regulation	IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1
Safety EMC/Standard	IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12
