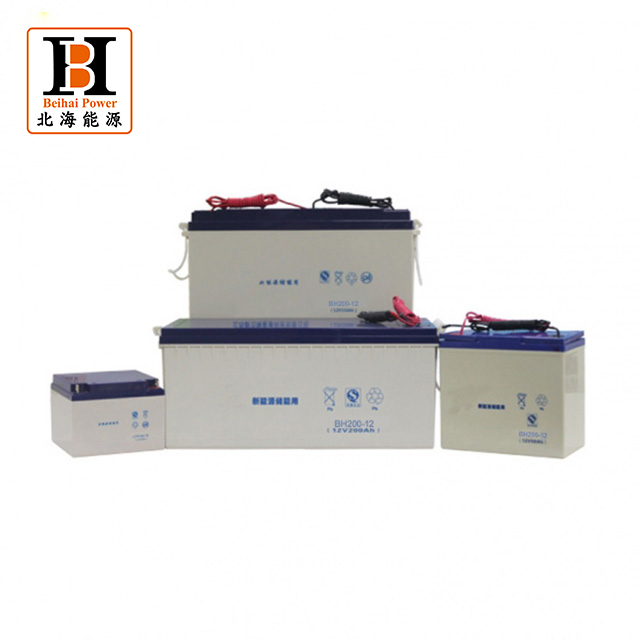

Rechargeable Sealed Gel Battery 12V 200ah Solar Energy Storage Battery

Short Description:

Gel Battery is a type of sealed valve regulated lead-acid battery (VRLA). Its electrolyte is a poorly flowing gel-like substance made from a mixture of sulphuric acid and “smoked” silica gel. This type of battery has good performance stability and anti-leakage properties, so it is widely used in uninterruptible power supply (UPS), solar energy, wind power stations and other occasions.

Battery Type: 12v 200ah battery GEL

Communication Port: CAN

Protection Class: IP54

Send email to us

Product Detail

Product Tags

Product Introduction

Product Parameters

Models NO.	Voltage&Capacity (AH/10Hour)	Length (mm)	Width (mm)	Height (mm)	Gross Weight (KGS)
BH200-2	2V 200AH	173	111	329	13.5
BH400-2	2V 400AH	211	176	329	25.5
BH600-2	2V 600AH	301	175	331	37
BH800-2	2V 800AH	410	176	333	48.5
BH000-2	2V 1000AH	470	175	329	55
BH500-2	2V 1500AH	401	351	342	91
BH2000-2	2V 2000AH	491	351	343	122
BH3000-2	2V 3000AH	712	353	341	182

Models NO.	Voltage&Capacity (AH/10Hour)	Length (mm)	Width (mm)	Height (mm)	Gross Weight (KGS)
BH24-12	12V 24AH	176	166	125	7.5
BH50-12	12V 50AH	229	138	228	14
BH65-12	12V 65AH	350	166	174	21
BH100-12	12V 100AH	331	176	214	30
BH120-12	12V 120AH	406	174	240	35
BH150-12	12V 150AH	483	170	240	46
BH200-12	12V 200AH	522	240	245	58
BH250-12	12V 250AH	522	240	245	66

Product Features

1. Excellent performance at high temperature: the electrolyte is in gel state without leakage and acid mist precipitation, so the performance is stable under high temperature conditions.

2. Long service life: due to the high stability of the electrolyte and low self-discharge rate, the service life of colloidal batteries is usually longer than that of traditional batteries.

3. High safety: The internal structure of colloidal batteries makes them safer, even in the case of overcharging, over-discharging or short-circuiting, there will be no explosion or fire.

4. Environmentally friendly: Colloidal batteries use lead-calcium polyalloy grids, which reduces the battery’s impact on the environment.

Application

GEL batteries have a wide range of applications in a variety of fields including, but not limited to, UPS systems, telecommunication equipment, security systems, medical equipment, electric vehicles, marine, wind and solar energy systems.

From powering golf carts and electric scooters to providing backup power for telecommunications systems and off-grid installations, this battery can deliver the power you need, when you need it. Its rugged construction and long cycle life also make it an excellent choice for marine and RV applications where durability and reliability are critical.
