Rack-Mounted Type Storage Battery 48v 50ah Lithium Battery

Short Description:

Rack-mounted lithium battery is a kind of energy storage system that integrates lithium batteries in a standard rack with high efficiency, reliability and scalability.

This advanced battery system is designed to meet the growing need for efficient, reliable power storage in a wide range of applications, from renewable energy integration to backup power for critical systems. With its high energy density, advanced monitoring and control capabilities, and ease of installation and maintenance, it is the perfect choice for applications ranging from renewable energy integration to backup power for critical infrastructure.


  • Battery Type: Lithium Ion
  • Communication Port: CAN
  • Protection Class: IP54
  • Usage: UPS/Off-grid system/Telecommunications
  • Product Detail

    Product Tags

    Product Introduction

    Rack-mounted lithium battery is a kind of energy storage system that integrates lithium batteries in a standard rack with high efficiency, reliability and scalability.

    This advanced battery system is designed to meet the growing need for efficient, reliable power storage in a wide range of applications, from renewable energy integration to backup power for critical systems. With its high energy density, advanced monitoring and control capabilities, and ease of installation and maintenance, it is the perfect choice for applications ranging from renewable energy integration to backup power for critical infrastructure.

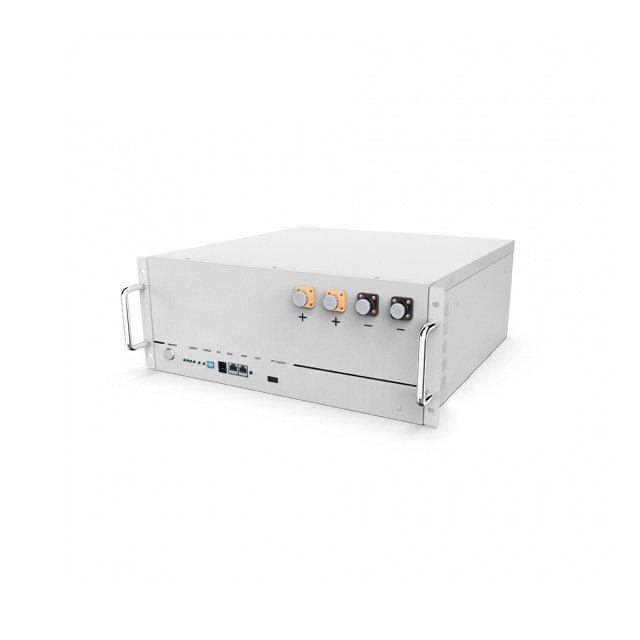

    lifepo4 lithium batteries

    Product Features

    Our rack-mountable lithium batteries feature a compact and space-saving design, making them the ideal solution for installations with limited space. With its modular construction, it offers scalability and flexibility to meet the specific needs of any application, from small residential projects to large commercial or industrial facilities.

    One of the key advantages of our rack-mountable lithium batteries is their high energy density, which provides a large amount of energy storage in a compact footprint. This increases system efficiency and enables more energy to be stored in a smaller space, reducing overall installation costs and maximizing the use of available space.

    Additionally, our lithium battery systems are equipped with advanced monitoring and control capabilities that integrate seamlessly with existing power management systems. This enables real-time monitoring of performance and the ability to optimize the battery system for maximum efficiency and longevity.

    The rack-mountable lithium battery is also designed for easy installation and maintenance, with hot-swappable battery modules that can be quickly and easily replaced without interrupting power. This minimizes downtime and ensures continuous, reliable operation.

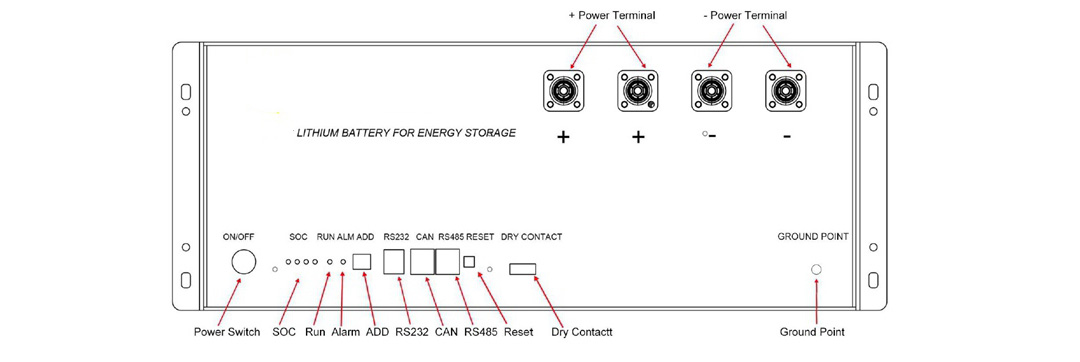

    Details of Lithium Battery

    Product Parameters

    Lithium Ion Battery Pack Model
    48V 50AH
    48V 100AH
    48V 150AH
    48V 200AH
    Nominal Voltage
    48V
    48V
    48V
    48V
    Nominal Capacity
    2400WH
    4800WH
    7200WH
    9600WH
    Usable Capacity (80% DOD)
    1920WH
    3840WH
    5760WH
    7680WH
    Dimension (mm)
    482*400*180
    482*232*568
    Weight (Kg)
    27Kg
    45Kg
    58Kg
    75Kg
    Discharge Voltage
    37.5 ~ 54.7V
    Charge Voltage
    48 ~ 54.7 V
    Charg/ Discharge Current
    Max Current 100A
    Communication
    CAN/ RS-485
    Operating Temperature Range
    - 10℃ ~ 50℃
    Humidity
    15% ~ 85%
    Product Warranty
    10 Years
    Design Life Time
    20+ Years
    Cycle Time
    6000+ Cycles
    Certificates
    CE , UN38.3, UL
    Compatible Inverter
    SMA, GROWATT, DEYE, GOODWE, SOLA X, SOFAR,,,etc
    Lithiu Battery Model
    48V 300AH
    48V 500AH
    48V 600AH
    48V 1000AH
    Nominal Voltage
    48V
    48V
    48V
    48V
    Battery Module
    3Pcs
    5Pcs
    3Pcs
    5Pcs
    Nominal Capacity
    14400WH
    24000WH
    28800WH
    48000WH
    Usable Capacity (80% DOD)
    11520WH
    19200WH
    23040WH
    38400WH
    Weight (Kg)
    85Kg
    140Kg
    230Kg
    400Kg
    Discharge Voltage
    37.5 ~ 54.7V
    Charge Voltage
    48 ~ 54.7 V
    Charg/ Discharge Current
    Customizable
    Communication
    CAN/ RS-485
    Operating Temperature Range
    - 10℃ ~ 50℃
    Humidity
    15% ~ 85%
    Product Warranty
    10 Years
    Design Life Time
    20+ Years
    Cycle Time
    6000+ Cycles
    Certificates
    CE , UN38.3, UL
    Compatible Inverter
    SMA, GROWATT, DEYE, GOODWE, SOLA X, SOFAR,,,etc
    Lithiu Battery Model
    48V 1200AH
    48V 1600AH
    48V 1800AH
    48V 2000AH
    Nominal Voltage
    48V
    48V
    48V
    48V
    Battery Module
    6Pcs
    8Pcs
    9Pcs
    10Pcs
    Nominal Capacity
    57600WH
    76800WH
    86400WH
    96000WH
    Usable Capacity (80% DOD)
    46080WH
    61440WH
    69120WH
    76800WH
    Weight (Kg)
    500Kg
    650Kg
    720Kg
    850Kg
    Discharge Voltage
    37.5 ~ 54.7V
    Charge Voltage
    48 ~ 54.7 V
    Charg/ Discharge Current
    Customizable
    Communication
    CAN/ RS-485
    Operating Temperature Range
    - 10℃ ~ 50℃
    Humidity
    15% ~ 85%
    Product Warranty
    10 Years
    Design Life Time
    20+ Years
    Cycle Time
    6000+ Cycles
    Certificates
    CE , UN38.3, UL
    Compatible Inverter
    SMA, GROWATT, DEYE, GOODWE, SOLA X, SOFAR,,,etc

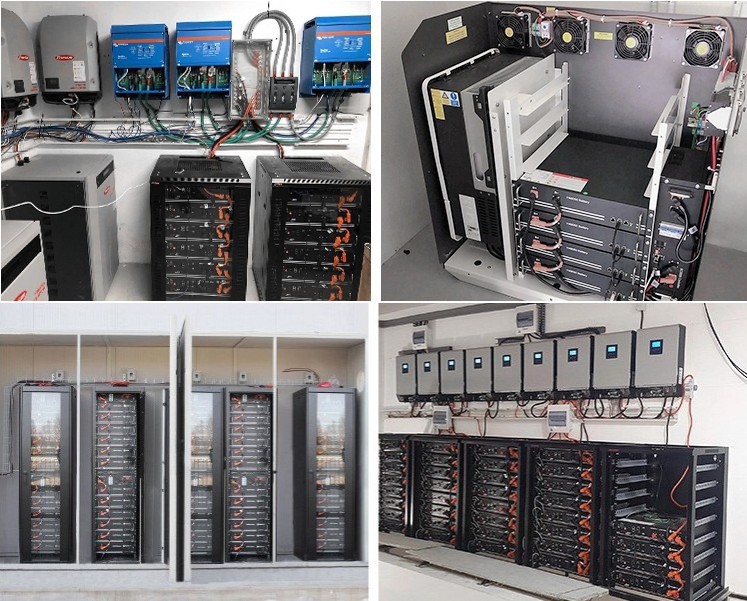

    Application

    Our lithium battery systems are suitable for a wide range of applications, including off-grid and on-grid renewable energy installations, as well as backup power for critical infrastructure such as telecommunications, data centers and emergency services. It can also be integrated into hybrid energy systems to optimize the use of renewable energy and reduce reliance on traditional fossil fuels.
    With their high performance, versatility and reliability, our rack-mountable lithium batteries are the perfect choice for any energy storage project. Whether you are looking to harness renewable energy or ensure uninterrupted power for critical systems, our lithium battery systems offer the ideal solution to meet your specific needs.
