Product Introduction

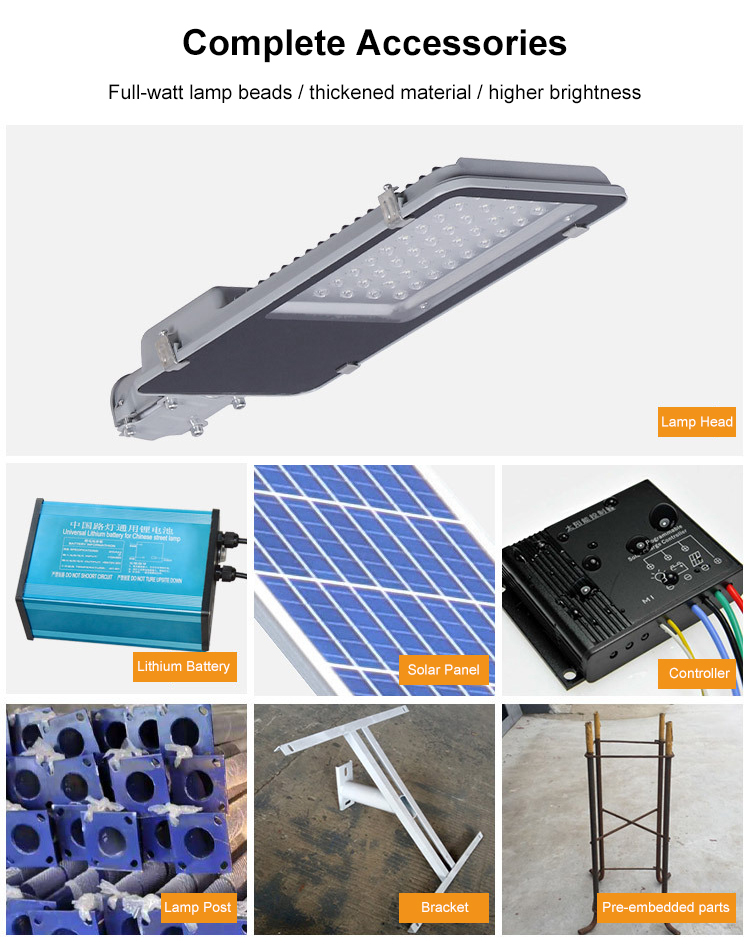

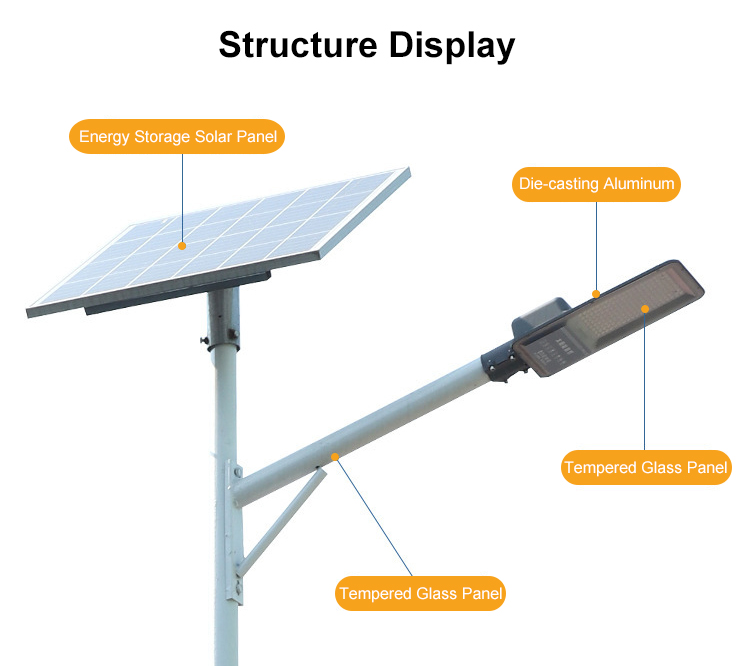

Off-grid solar street light is a kind of independently powered street light system, which uses solar energy as the main energy source and stores the energy in batteries without connecting to the traditional power grid. This type of street light system usually consists of solar panels, energy storage batteries, LED lamps and controllers.
Product Parameters
Item
|
20W
|
30W
|
40W
|
LED Effeciency
|
170~180lm/w
|
||
LED Brand
|
USA CREE LED
|
||
AC input
|
100~220V
|
||
PF
|
0.9
|
||
Anti-surge
|
4KV
|
||
Beam Angle
|
TYPE II WIDE, 60*165D
|
||
CCT
|
3000K/4000K/6000K
|
||
Solar Panel
|
POLY 40W
|
POLY 60W
|
POLY 70W
|
Battery
|
LIFEPO4 12.8V 230.4WH
|
LIFEPO4 12.8V 307.2WH
|
LIFEPO4 12.8V 350.4WH
|
Charging Time
|
5-8hours (sunny day)
|
||
Discharging Time
|
min 12 hours per night
|
||
Rainy/ Cloudy back up
|
3-5 days
|
||
Controller
|
MPPT Smart controller
|
||
Automomy
|
Over 24 hours at full charge
|
||
Operration
|
Time slot programs + dusk sensor
|
||
Programme Mode
|
brightness 100% * 4hrs+70% * 2hrs+50% * 6hrs till dawn off
|
||
IP Rating
|
IP66
|
||
Lamp Material
|
DIE-CASTING ALUMINUM
|
||
Installation Fits
|
5~7m
|
Product Features
1. Independent power supply: off-grid solar street lights do not rely on traditional grid power, and can be installed and used in areas without grid access, such as remote areas, rural areas or wild environments.
2. Energy saving and environmental protection: solar street lights use solar energy for charging and do not require the use of fossil fuels, reducing carbon emissions and environmental pollution. Meanwhile, LED lamps are energy efficient and can further reduce energy consumption.
3. Low maintenance cost: the maintenance cost of off-grid solar street light is relatively low. Solar panels have a long lifespan and LED luminaires have a longer lifespan and do not need to be supplied with electricity for them.
4. Easy to install and move: Off-grid solar street lights are relatively easy to install as they do not require cable wiring. At the same time, its independent power supply characteristic makes the street light can be flexibly moved or rearranged.
5. Automatic control and intelligence: Off-grid solar street lights are usually equipped with light and time controllers, which can automatically adjust the light on and off according to the light and time, improving the efficiency of energy use.
6. Increased safety: Nighttime lighting is critical to the safety of roads and public areas. Off-grid solar street lights can provide stable lighting, improve nighttime visibility and reduce the risk of accidents.

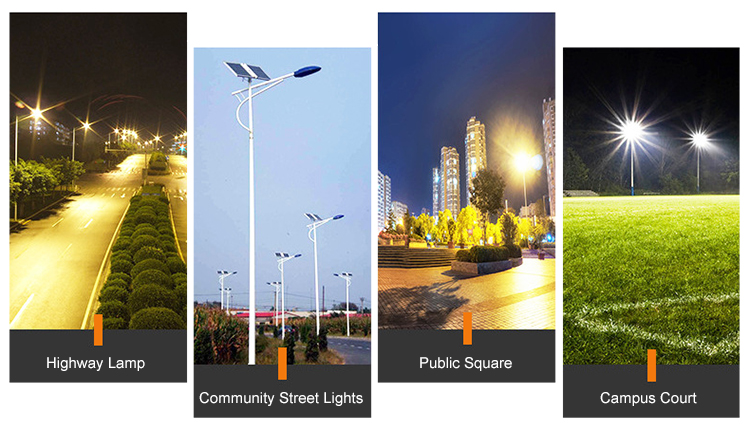

Application
Off-grid solar street lights have great potential for use in scenarios where there is no grid power, they can provide lighting in remote areas and contribute to sustainable development and energy savings.

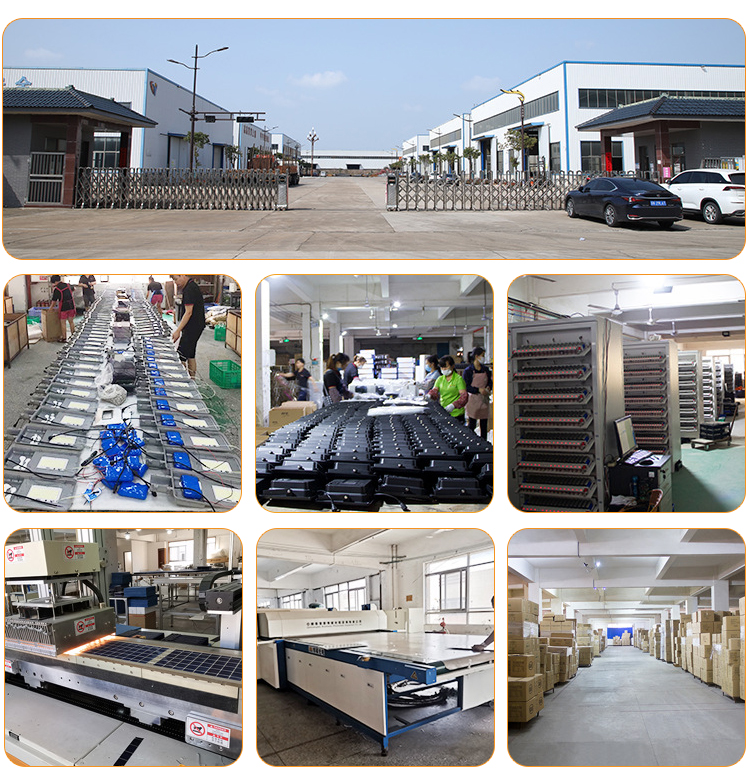

Company Profile
