Monocrystalline Bifacial Flexible Solar Panel 335W Half Cell Solar Panel

Short Description:

Flexible solar panel is a more flexible and lightweight solar power generation device compared to traditional silicon-based solar panels, which are solar panels made of resin-encapsulated amorphous silicon as the main photovoltaic element layer laid flat on a substrate made of flexible material. It utilizes a flexible, non-silicon-based material as a substrate, such as a polymer or thin-film material, which allows it to bend and adapt to the shape of irregular surfaces.

Cell type: Mono 182*91mm

Operate Temperature: -40-+85degree

Max series fuse rating: 25A

Application level: Class A

Send email to us

Product Detail

Product Tags

Product Introduction
Flexible solar panel is a more flexible and lightweight solar power generation device compared to traditional silicon-based solar panels, which are solar panels made of resin-encapsulated amorphous silicon as the main photovoltaic element layer laid flat on a substrate made of flexible material. It utilizes a flexible, non-silicon-based material as a substrate, such as a polymer or thin-film material, which allows it to bend and adapt to the shape of irregular surfaces.

Product Feature

1. Thin and flexible: Compared to traditional silicon-based solar panels, flexible solar panels are very thin and light, with lower weight and thinner thickness. This makes it more portable and flexible in application, and can be adapted to different curved surfaces and complex shapes.
2. Highly adaptable: Flexible solar panels are highly adaptable and can be applied to a variety of surfaces, such as building facades, car roofs, tents, boats, etc. They can even be used on wearable devices and mobile electronic devices to provide independent power supply to these devices.
3. Durability: Flexible solar panels are made of weather-resistant materials with good resistance to wind, water, and corrosion, enabling them to operate stably in outdoor environments for long periods of time.
4. High Efficiency: Although the conversion efficiency of flexible solar panels may be relatively low, more solar energy collection can be obtained in a limited space due to their large area coverage capability and flexibility.
5. Environmentally sustainable: Flexible solar panels are usually manufactured with non-toxic, non-polluting materials and can effectively utilize sunlight resources, which is clean energy and environmentally friendly.

Product Parameters

Electrical Characteristics(STC)
SOLAR CELLS	MONO-CRYSTALLINE
Maximum Power (Pmax)	335W
Voltage at Pmax (Vmp)	27.3V
Current at Pmax (Imp)	12.3A
Open-Circuit Voltage (Voc)	32.8V
Short-Circuit Current (Isc)	13.1A
Maximum System Voltage (V DC)	1000 V (iec)
Module Efficiency	18.27%
Maximum Series Fuse	25A
Temperature Coefficient of Pmax	-(0.38±0.05) % / °C
Temperature Coefficient of Voc	(0.036±0.015) % / °C
Temperature Coefficient of Isc	0.07% / °C
Nominal Operating Cell Temperature	- 40- +85°C

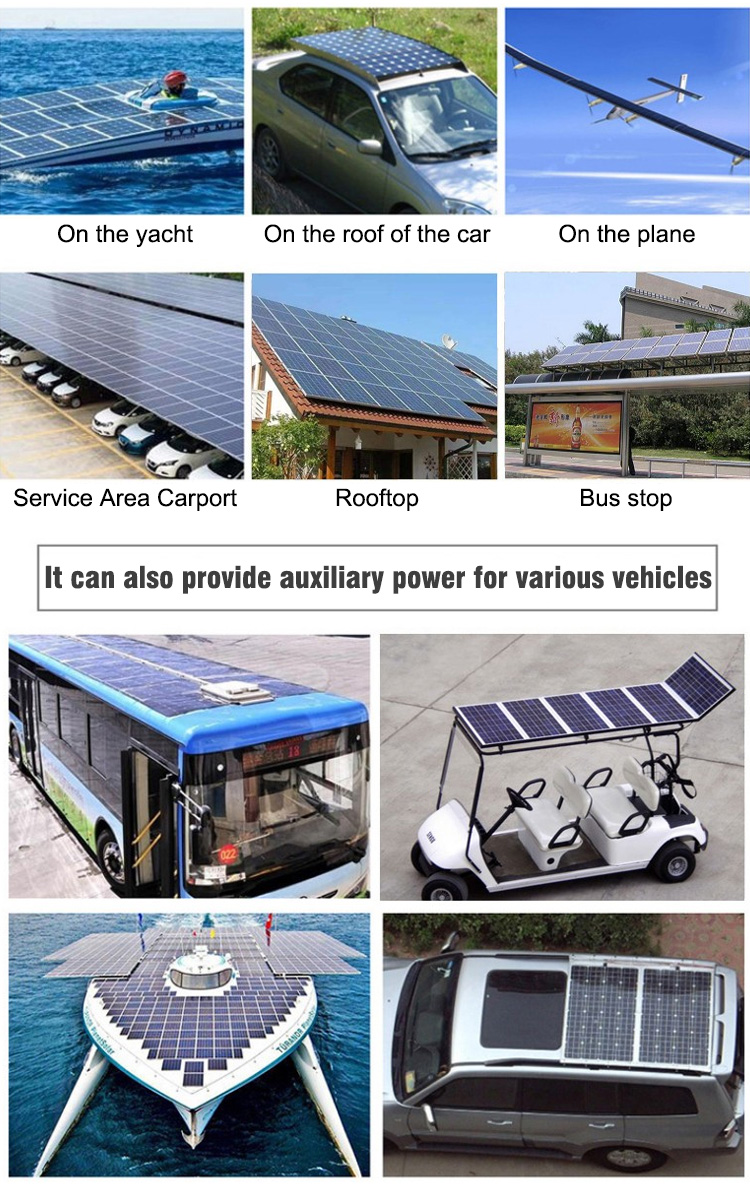

Application

Flexible solar panels have a wide range of applications and can be used in scenarios such as outdoor activities, camping, boats, mobile power, and remote area power supply. In addition, it can be integrated with buildings and become part of the building, providing green energy to the building and realizing energy self-sufficiency of the building.
