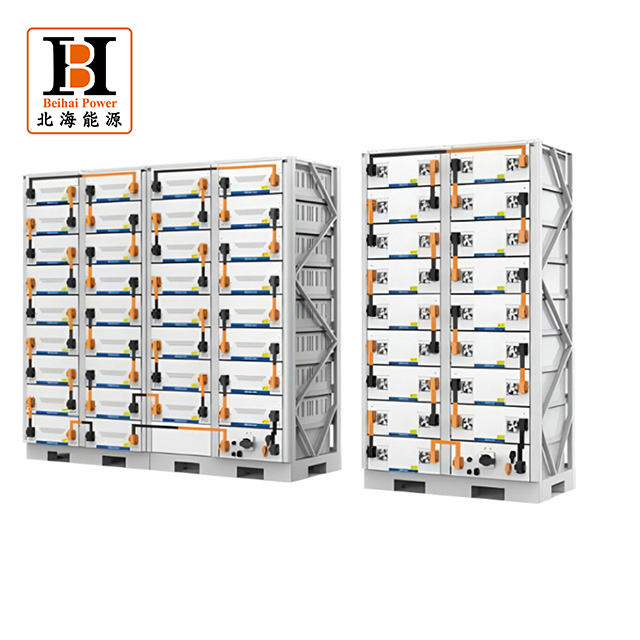

Lithium Ion Battery Pack Cabinet Solar Power Energy Storage System

Short Description:

Cabinet lithium battery is a kind of energy storage device, which usually consists of multiple lithium battery modules with high energy density and power density. Cabinet lithium batteries are widely used in energy storage, electric vehicles, renewable energy and other fields.


  • Battery Type: Lithium Ion
  • Communication Port: CAN
  • Protection Class: IP54
  • Product Detail

    Product Tags

    Product Introduction

    Cabinet lithium battery is a kind of energy storage device, which usually consists of multiple lithium battery modules with high energy density and power density. Cabinet lithium batteries are widely used in energy storage, electric vehicles, renewable energy and other fields.

    Lithium-ion battery pack cabinets feature high-capacity lithium-ion battery packs to provide long-lasting energy storage for residential, commercial and industrial applications. Thanks to its advanced technology, the cabinet is capable of storing large amounts of energy, making it an ideal solution for off-grid and backup power systems. Whether you need to power your home during a power outage or store energy generated by solar panels, this cabinet provides a reliable, efficient solution.

    energy storage battery

    Product Features
    1. High energy density: the cabinet lithium battery uses high energy density lithium-ion batteries, which can achieve a long range.
    2. High power density: the high power density of the lithium cabinet battery can provide fast charging and discharging capability.
    3. Long lifespan: the cycle life of lithium cabinet batteries is long, usually up to 2000 times or more, which can meet the needs of long-time use.
    4. Safe and reliable: lithium cabinet batteries undergo strict safety testing and design, to ensure the use of safe and reliable.
    5. Environmental protection and energy saving: the cabinet lithium battery does not contain lead, mercury and other harmful substances, friendly to the environment, but also to reduce energy consumption costs.

    Product Parameters

    Product Name
    Lithium Ion Battery Cabinet
    Battery Type
    Lithium Iron Phosphaste (LiFePO4)
    Lithium Battery Cabinet Capacity
    20Kwh 30Kwh 40Kwh
    Lithium Battery Cabinet Voltage
    48V, 96V
    Battery BMS
    Included
    Max Constant Charge Current
    100A (customizable)
    Max Constant Discharge Current
    120A (customizable)
    Charge Temperature
    0-60℃
    Discharge Temperature
    -20-60℃
    Storage Temperature
    -20-45℃
    BMS Protection
    Overcurrent, overvoltage, undervoltage, short circuit, over temperature
    Efficiency
    98%
    Depth of Discharge
    100%
    Cabinet Dimension
    1900*1300*1100mm
    Operation Cycle Life
    More than 20 years
    Transport Certificates
    UN38.3, MSDS
    Products Certificates
    CE, IEC, UL
    Warranty
    12 Years
    Color
    White, Black

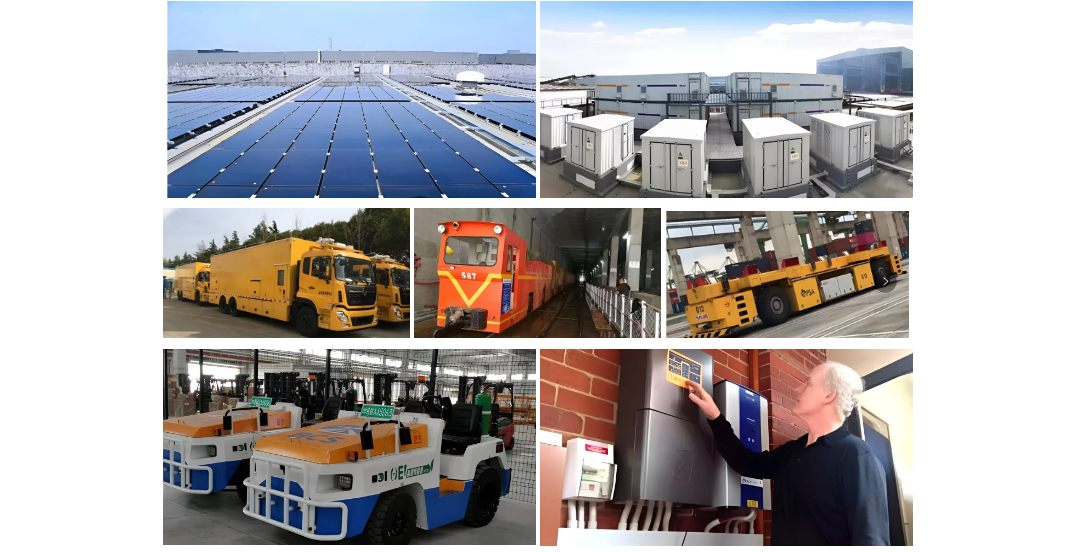

    Application

    This product is ideal for a wide range of applications including residential, commercial buildings and industrial facilities. Whether used as backup power for critical systems or to store energy from renewable sources, lithium-ion battery cabinets are versatile and reliable solutions for different energy storage needs. Its high capacity and efficient design make it ideal for off-grid and remote areas where reliable energy storage is critical.

    battery lithium

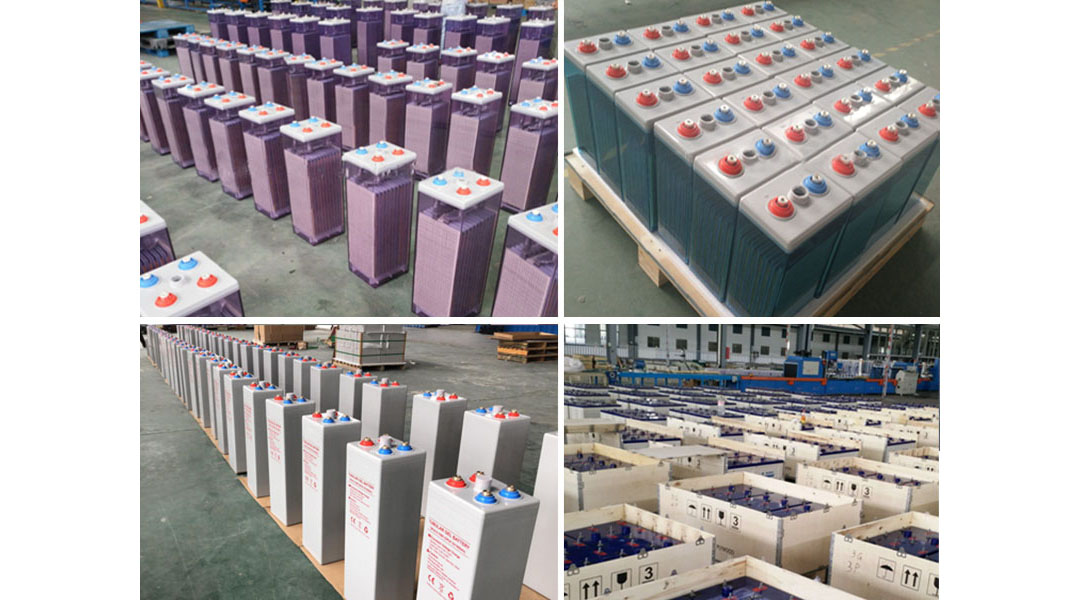

    Packing & Delivery

    battery pack

    Company Profile

    rechargeable battery
