High Quality Pile AC EV Charger

Short Description:

Ac charging pile is a device used to charge electric vehicles, which can transfer AC power to the battery of the electric vehicle for charging. Ac charging piles are generally used in private charging places such as homes and offices, as well as public places such as urban roads.


  • Branding: BEIHAI POWER
  • Interface Standard: Type 2 / Type 1
  • Output Current: AC
  • Input Voltage: 200 - 220v
  • Output Power: 7kW
  • Product Detail

    Product Tags

    Products Description

    Ac charging pile is a device used to charge electric vehicles, which can transfer AC power to the battery of the electric vehicle for charging. Ac charging piles are generally used in private charging places such as homes and offices, as well as public places such as urban roads.
    The charging interface of AC charging pile is generally IEC 62196 Type 2 interface of international standard or GB/T 20234.2 interface of national standard.
    The cost of AC charging pile is relatively low, the scope of application is relatively wide, so in the popularity of electric vehicles, AC charging pile plays an important role, can provide users with convenient and fast charging services.

    advantage-

    Product Parameters

    Model Name
    HDRCDZ-B-32A-7KW-1
    AC
    Nominal
    Input
    Voltage(V)
    220±15% AC
    Frequency(Hz)
    45-66 Hz
    AC
    Nominal
    Output
    Voltage(V)
    220AC
    power(KW)
    7KW
    Current
    32A
    Charging port
    1
    Cable Length
    3.5M
    Configure
    and
    protect
    information
    LED Indicator
    Green/yellow/red color for different status
    Screen
    4.3 Inch industrial screen
    Chaiging Operation
    Swipiing Card
    Energy Meter
    MID certified
    communication mode
    ethernet network
    Cooling method
    Air cooling
    Protection Grade
    IP 54
    Earth Leakage Protection(mA)
    30 mA
    Other
    information
    Reliability(MTBF)
    50000H
    Installation Method
    Column or wall hanging
    Environmental
    Index
    Working Altitude
    <2000M
    Operating temperature
    –20℃-60℃
    Working humidity
    5%~95% without condensation

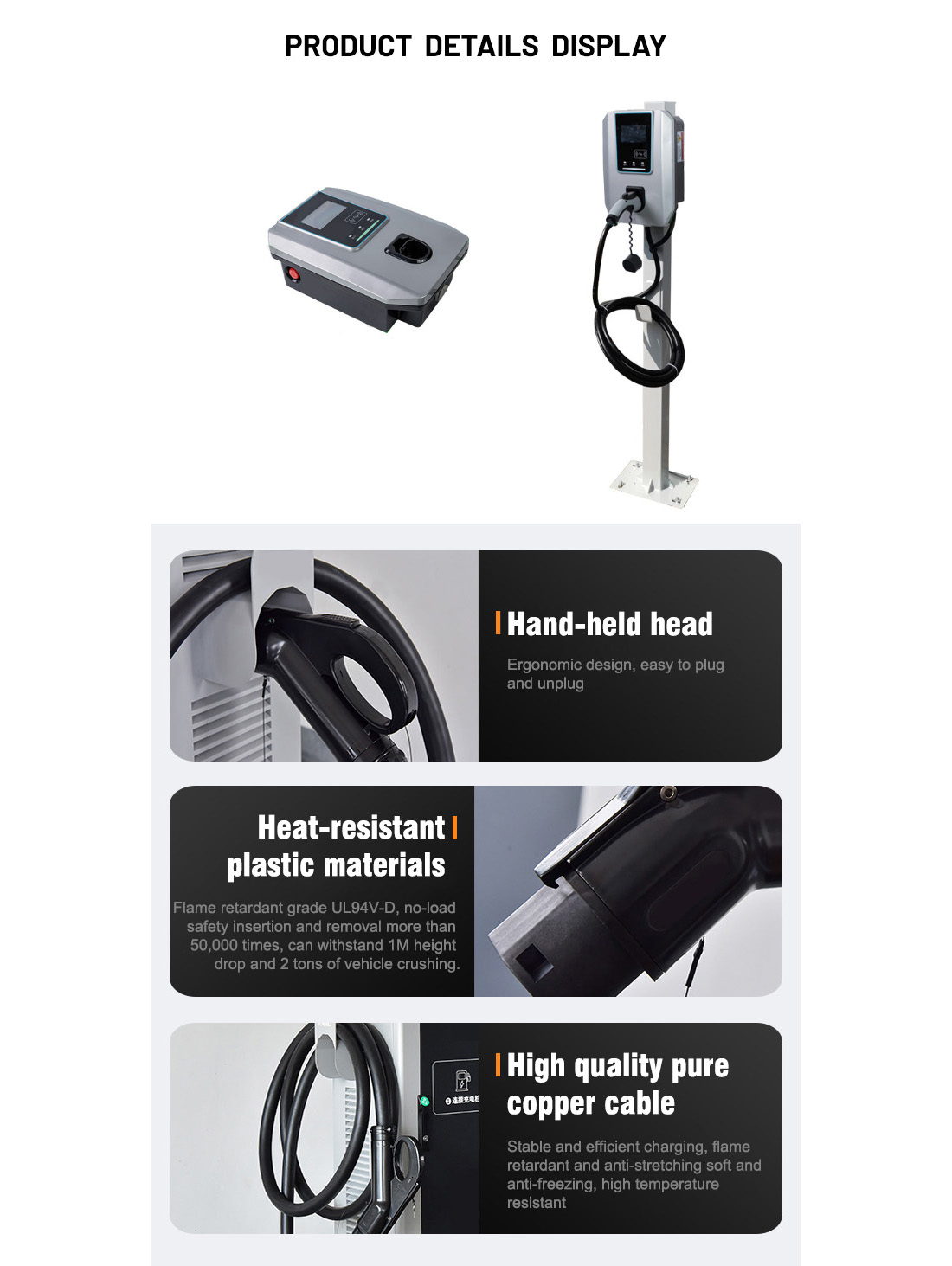

    PRODUCT  DETAILS  DISPLAY-

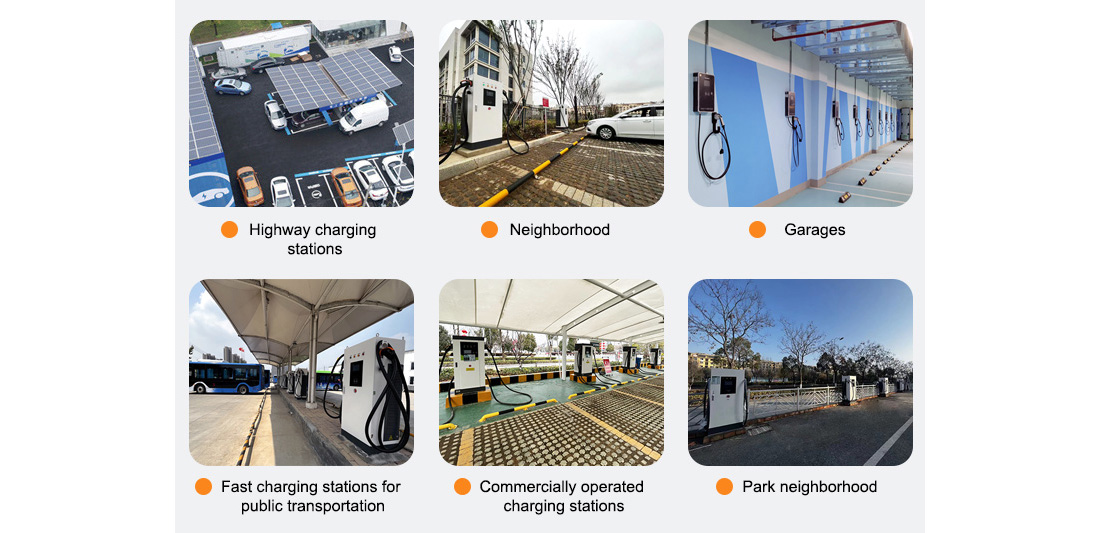

    Application

    Ac charging piles are widely used in homes, offices, public parking lots, urban roads and other places, and can provide convenient and fast charging services for electric vehicles. With the popularization of electric vehicles and the continuous development of technology, the application range of AC charging piles will gradually expand.

    appliance

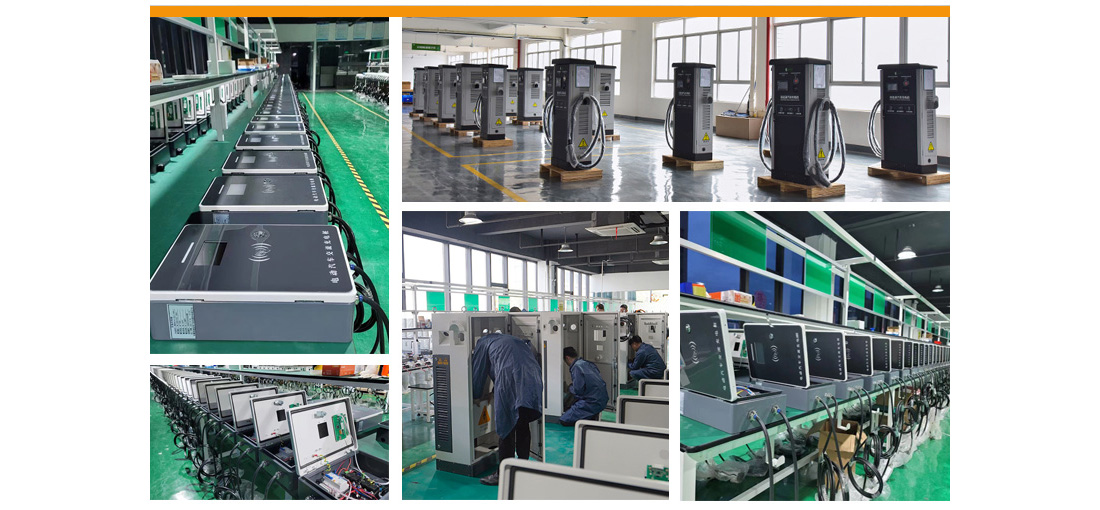

    Company Profile
