DC Brushless MPPT Controller Electric Deep Well Borehole Submersible Solar Water Pump

Short Description:

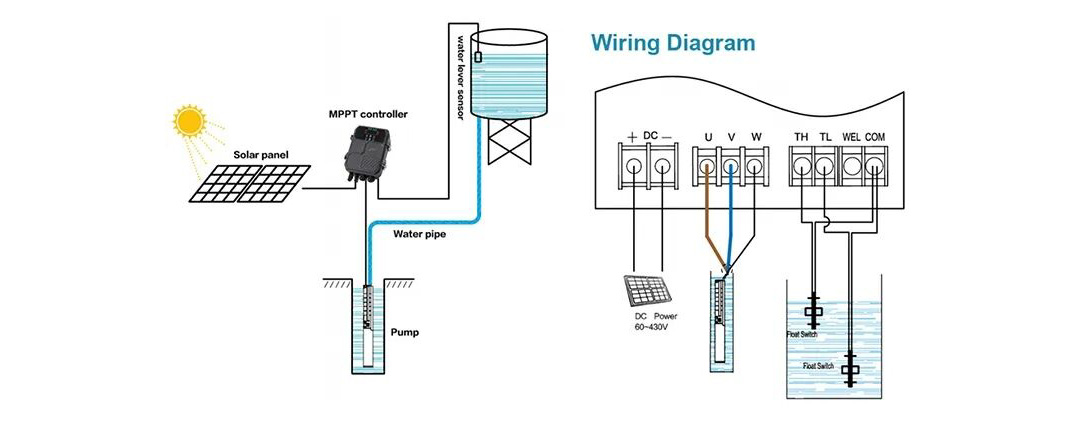

A DC solar water pump is a type of water pump that operates using direct current (DC) electricity generated from solar panels. DC solar water pump is a kind of water pump equipment driven directly by solar energy, which is mainly composed of three parts: solar panel, controller and water pump. The solar panel converts solar energy into DC electricity, and then drives the pump to work through the controller to achieve the purpose of pumping water from a low place to a high place. It is commonly used in areas where access to grid electricity is limited or unreliable.

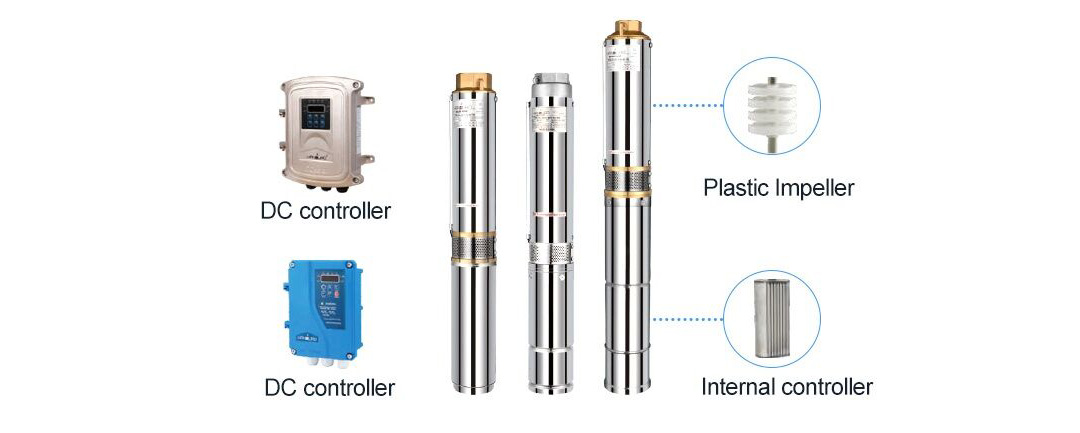

CONTROLLER: MPPT Controller

Pump Protection Class: IP68

Material: stainless steel

Application: Drinking water treatment, Family Homes

Send email to us

Product Detail

Product Tags

Product Introduction

Product Paramenters

DC Pump Model	Pump Power(watt)	Water Flow(m3/h)	Water Head(m)	Outlet(inch)	Weight(kg)
3JTS(T)1.0/30-D24/80	80w	1.0	30	0.75″	7
3JTS(T)1.5/80-D24/210	210w	1.5	80	0.75″	7.5
3JTS(T)2.3/80-D48/750	750w	2.3	80	0.75″	9
4JTS3.0/60-D36/500	500w	3	60	1.0″	10
4JTS3.8/95-D72/1000	1000w	3.8	95	1.0″	13.5
4JTS4.2/110-D72/1300	1300w	4.2	110	1.0″	14
3JTSC6.5/80-D72/1000	1000w	6.5	80	1.25″	14.5
3JTSC7.0/140-D192/1800	1800w	7.0	140	1.25″	17.5
3JTSC7.0/180-D216/2200	2200w	7.0	180	1.25″	15.5
4JTSC15/70-D72/1300	1300w	15	70	2.0″	14
4JTSC22/90-D216/3000	3000w	22	90	2.0″	14
4JTSC25/125-D380/5500	5500w	25	125	2.0″	16.5
6JTSC35/45-D216/2200	2200w	35	45	3.0″	16
6JTSC33/101-D380/7500	7500w	33	101	3.0″	22.5
6JTSC68/44-D380/5500	5500w	68	44	4.0″	23.5
6JTSC68/58-D380/7500	7500w	68	58	4.0″	25

Product Feature

1.Off-grid Water Supply: DC solar water pumps are ideal for providing water supply in off-grid locations, such as remote villages, farms, and rural communities. They can draw water from wells, lakes, or other water sources and supply it for various purposes, including irrigation, livestock watering, and domestic use.

2. Solar-Powered: DC solar water pumps are powered by solar energy. They are connected to solar panels that convert sunlight into DC electricity, making them a sustainable and renewable energy solution. With ample sunlight, the solar panels generate electricity to power the pump.

3. Versatility: DC solar water pumps are available in various sizes and capacities, allowing for different water pumping requirements. They can be used for small-scale garden irrigation, agricultural irrigation, water features, and other water pumping needs.

4. Cost Savings: DC solar water pumps offer cost savings by reducing or eliminating the need for grid electricity or fuel. Once installed, they operate using free solar energy, reducing operational costs and providing long-term savings.

5. Easy Installation and Maintenance: DC solar water pumps are relatively easy to install and require minimal maintenance. They do not require extensive wiring or infrastructure, making installation simpler and less costly. Routine maintenance involves monitoring the system’s performance and keeping the solar panels clean.

6. Environmental Friendly: DC solar water pumps contribute to environmental sustainability by utilizing clean and renewable solar energy. They do not release greenhouse gas emissions or contribute to air pollution, promoting a greener and more sustainable water pumping solution.

7. Backup Battery Options: Some DC solar water pump systems come with the option of incorporating backup battery storage. This allows the pump to operate during periods of low sunlight or at night, ensuring a continuous water supply.

Application

1. Agricultural irrigation: DC solar water pumps can be used for agricultural irrigation to provide the required water for crops. They can pump water from wells, rivers or reservoirs and deliver it to farmland through an irrigation system to meet the irrigation needs of crops.

2. Ranching and livestock: DC solar water pumps can provide drinking water supply for ranching and livestock. They can pump water from a water source and deliver it to drinking troughs, feeders or drinking systems to ensure that livestock have enough water to drink

3. Domestic water supply: DC solar water pumps can be used to provide drinking water supply to households in remote areas or where there is no reliable water supply system. They can pump water from a well or water source and store it in a tank to meet the daily water needs of the household.

4. Landscaping and fountains: DC solar water pumps can be used for fountains, artificial waterfalls and water feature projects in landscapes, parks and courtyards. They provide water circulation and fountain effects for landscapes, adding beauty and appeal.

5. Water circulation and pool filtration: DC solar water pumps can be used in water circulation and pool filtration systems. They keep pools clean and water quality high, preventing problems such as water stagnation and algae growth.

6. Disaster Response and Humanitarian Aid: DC solar water pumps can provide a temporary supply of potable water during natural disasters or emergencies. They can be quickly deployed to provide an emergency water supply to disaster-stricken areas or refugee camps.

7. Wilderness camping and outdoor activities: DC solar water pumps can be used for water supply in wilderness camping, open-air activities and outdoor places. They can pump water from rivers, lakes or wells to provide campers and outdoor enthusiasts with a clean source of drinking water.
