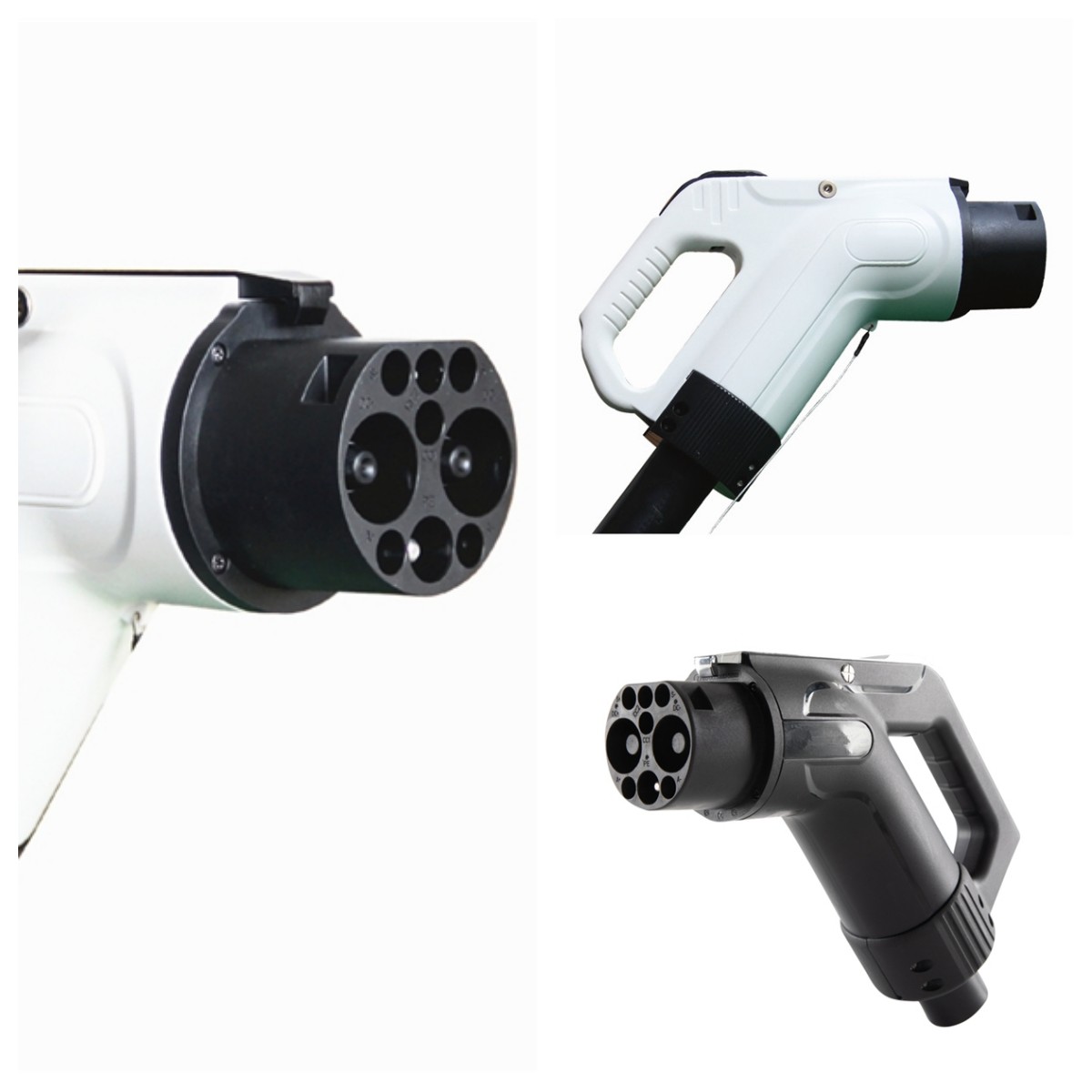

China Standard 120KW GB/T Dual Gun 250A DC Fast Charging Connector EV Charging Plug For Electric Vehicle Charging Station

Short Description:

The EV Charging Connector-China Standard 120KW GB/T Dual Gun 250A DC Fast Charging Connector, specifically designed for electric vehicle charging stations. It features a high-performance dual-gun design compliant with GB/T standards, supporting a maximum current of 250A and power output of 120KW, ensuring a fast and safe charging experience. Made from premium materials with precision engineering, the connector is durable, reliable, and suitable for various climate conditions and frequent high-demand usage. Compatible with a wide range of electric vehicle models, it is an ideal choice for charging stations and operators looking to enhance charging efficiency.

Rated Voltage: 750V/1000V DC

Rated Current: 80A 125A 200A 250A

Insulation resistance: >2000MΩ (DC1000V)

Terminal temperature rise: <50K

Withstand voltage: 3200V

Vibration resistance: GB/T 20234.3

Contact impedance: 0.5MΩ Max

Send email to us

Product Detail

Product Tags

The 120KW GB/T EV Charging Gun 250A DC Fast Charging Connector is a cutting-edge solution for electric vehicle (EV) charging stations, designed to meet the increasing demands of the EV market with efficiency, safety, and reliability.

EV Charging Connectors Detailed:

Features	Meet GB/T 20234.2-2015 regulations and requirements
	Nice appearance，hand-held ergonomic design，easy plug
	Safety pins insulated head design to prevent accidental diirecrt contact with staff
	Excellent protection performance,protection grade IP55(working condition)
Mechanical properties	Mechanical life : no-load plug in/pull out＞10000 times
Mechanical properties	Impat of external force: can afford 1m drop and 2t vehicle run over pressure
Applied Materials	Case Material: Thermoplastic,flame retardant grade UL94 V-0
Applied Materials	Pin：Copper alloy,silver + thermoplastic on the top
Environmental performance	Operating temperature：-30℃～+50℃

EV Charging Connectors Model selection and the standard wiring

Model	Rated current	Cable specification
BH-GBT-EVDC80	80A	3 X 16mm² + 2 X 4mm² + 2P(4 X 0.75mm²)+ 2P(2 X 0.75mm²)
BH-GBT-EVDC125	125A	2 X 35mm² + 1 X 16mm² + 2 X 4mm² + 2P(4 X 0.75mm²)+ 2P(2 X 0.75mm²)
BH-GBT-EVDC200	200A	2 X 70mm² + 1 X 25mm² + 2 X 4mm² + 2P(4 X 0.75mm²)+ 2P(2 X 0.75mm²)
BH-GBT-EVDC250	250A	2 X 80mm² + 1 X 25mm² + 2 X 4mm² + 2P(4 X 0.75mm²)+ 2P(2 X 0.75mm²)

Applications
This charging connector is ideal for various applications, including:
Public Charging Stations: Enhance charging efficiency and reduce waiting times for EV drivers.
Fleet Operations: Support rapid charging for commercial and government fleets.
Residential and Commercial Complexes: Provide convenient and reliable charging for residents and tenants.

Why Choose This Connector?
Efficiency: High power and dual-gun capability boost operational performance.
Reliability: Engineered for long-lasting use in demanding conditions.
Versatility: Compatible with a wide array of GB/T-compliant electric vehicles.

The 120KW GB/T Dual Gun 250A DC Fast Charging Connector is an advanced charging solution that combines speed, safety, and durability. Whether for large-scale charging networks or private installations, this connector is a perfect choice for meeting the demands of modern electric mobility.
