7kw 32A Wall Mounted Indoor AC CCS type 2 EV Single Gun Charging Pile

Short Description:

AC charging pile is a kind of charging equipment designed for electric vehicles, mainly by providing stable AC power to the on-board charger on the electric vehicle, and then realising the slow-speed charging of electric vehicles. This charging method occupies an important position in the market for its economy and convenience. The technology and structure of AC charging Posts are relatively simple and the manufacturing cost is low, so the price is affordable and suitable for wide application in residential districts, commercial car parks, public places and other scenarios. It not only meets the daily charging needs of electric vehicle users, but also provides value-added services for car parks and other venues, enhancing user experience. In addition, the AC charger has less impact on the grid load, which is conducive to the stable operation of the grid. It does not require complex power conversion equipment, and only needs to supply AC power from the grid directly to the on-board charger, which reduces energy loss and grid pressure.

AC input voltage range (V): 220±15%

Frequency Range (H2): 45~66

Output power (KW): 7KW

Maximum Output Current (A): 32A

level of protection: IP65

heat dissipation control: natural cooling

Charging operation: swipe or scan

Send email to us

Product Detail

Product Tags

Product Description:

AC charging piles are devices designed to provide charging services for electric vehicles. AC charging piles themselves do not have direct charging functions, but need to be connected to the on-board charger (OBC) on the electric vehicle to convert AC power to DC power, which in turn charges the battery of the electric vehicle, and due to the fact that the power of the OBC is usually small, the charging speed of AC charging post is relatively slow. Generally speaking, it takes 6 to 9 hours or even longer to fully charge an EV (with normal battery capacity). Although AC charging stations have a relatively slow charging speed and take a longer time to fully charge an EV’s battery, this does not affect their advantages in home charging and long-time parking charging scenarios. Owners can park their EVs near the charging post at night or during free time for charging, which does not affect daily use and can make full use of the grid’s low hours for charging, reducing charging costs.

The working principle of AC charging pile is relatively simple, it mainly plays the role of controlling the power supply, providing stable AC power for the on-board charger of the electric vehicle. The on-board charger then converts the AC power into DC power to charge the battery of the electric vehicle. In addition, AC charging piles can be classified according to the power and installation method. Common AC charging piles have a power of 3.5kw and 7 kw, etc., and they have different shapes and structures. Portable AC charging posts are usually small in size and easy to carry and install; wall-mounted and floor-mounted AC charging posts are relatively large and need to be fixed in a designated location.

In summary, AC charging piles play an important role in the field of electric vehicle charging due to their economical, convenient and grid-friendly features. With the rapid development of the electric vehicle industry and the continuous improvement of the charging infrastructure, the application prospect of AC charging piles will be broader.

Product Parameters：

7KW AC Double Gun (wall and floor) charging pile
unit type	BHAC-32A-7KW
technical parameters
AC input	Voltage range (V)	220±15%
AC input	Frequency range (Hz)	45~66
AC output	Voltage range (V)	220
	Output Power (KW)	7
	Maximum current (A)	32
	Charging interface	1
Configure Protection Information	Operation Instruction	Power,Charge,Fault
	machine display	No/4.3-inch display
	Charging operation	Swipe the card or scan the code
	Metering mode	Hourly rate
	Communication	Ethernet(Standard Communication Protocol)
	Heat dissipation control	Natural Cooling
	Protection level	IP65
	Leakage protection(mA)	30
Equipment Other Information	Reliability (MTBF)	50000
	Size (WDH) mm	2701101365 (Landing)270110400 (Wall mounted)
	Installation mode	Landing type Wall mounted type
	Routing mode	Up (down) into line
Worksing Environment	Altitude (m)	≤2000
	Operating temperature(℃)	-20~50
	Storage temperature(℃)	-40~70
	Average relative humidity	5%~95%
Optional	4G Wireless Communication	Charging gun 5m

Product Feature：

Application：

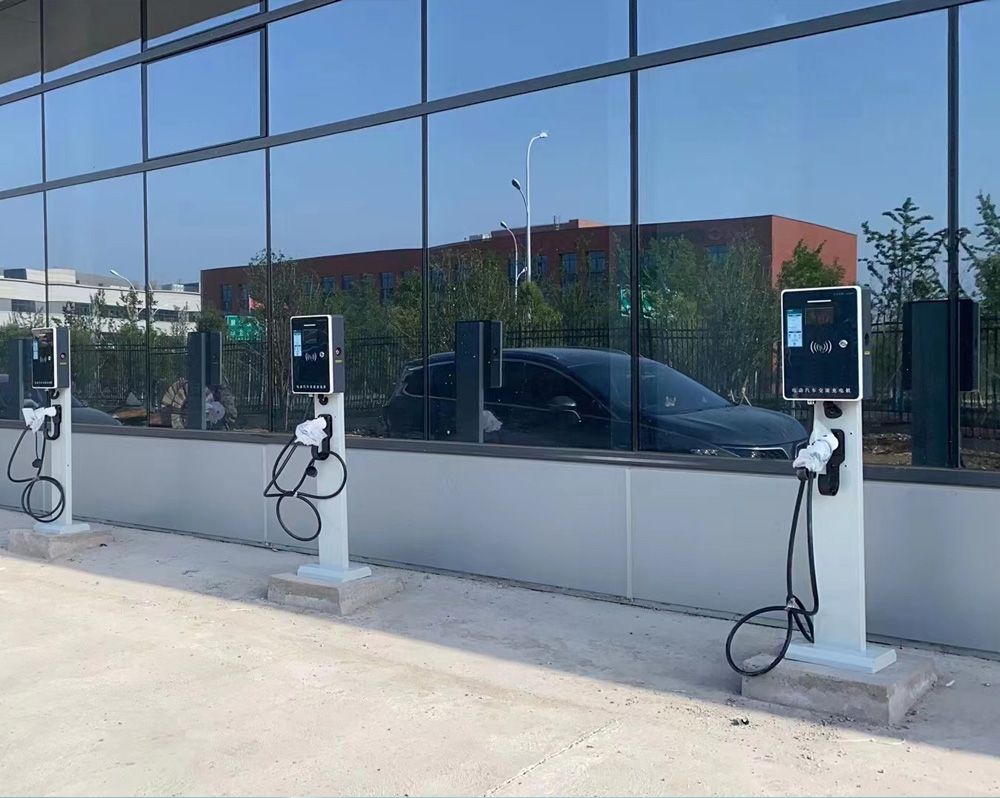

AC charging piles are more suitable for installation in car parks in residential areas as the charging time is longer and suitable for night-time charging. In addition, AC charging piles are also installed in some commercial car parks, office buildings and public places to meet the charging needs of different users as follows:

Home charging: AC charging posts are used in residential homes to provide AC power to electric vehicles that have on-board chargers.

Commercial car parks: AC charging posts can be installed in commercial car parks to provide charging for electric vehicles that come to park.

Public Charging Stations: Public charging piles are installed in public places, bus stops and motorway service areas to provide charging services for electric vehicles.

Charging Pile Operators: Charging pile operators can install AC charging piles in urban public areas, shopping malls, hotels, etc. to provide convenient charging services for EV users.

Scenic spots: Installing charging piles in scenic spots can facilitate tourists to charge electric vehicles and improve their travelling experience and satisfaction.

With the popularization of electric vehicles and the continuous development of technology, the application range of AC charging piles will gradually expand.
