51.2V 100AH 200AH Stacked Battery High Voltage Rechargeable Lithium Batteries

Short Description:

Stacked batteries, also known as laminated batteries or laminated batteries, are a special type of battery structure.Unlike traditional batteries, our stacked design allows multiple battery cells to be stacked on top of each other, maximizing energy density and overall capacity. This innovative approach enables a compact, lightweight form factor, making stacked cells ideal for portable and stationary energy storage needs.

Battery Type: Lithium Ion

Type: All-in-one

Communication Port: CAN

Protection Class: IP54

Send email to us

Product Detail

Product Tags

Product Introduction

Features

1. High Energy Density: The design of stacked batteries results in less wasted space inside the battery, so more active material can be included, thus increasing the total capacity. This design allows stacked batteries to have a higher energy density compared to other types of batteries.

2. Long life: The internal structure of stacked batteries allows for better heat distribution, which prevents the battery from expanding during charging and discharging, thus extending the battery’s life.

3. Fast charging and discharging: Stacked batteries support high-current charging and discharging, which gives them an advantage in application scenarios that require fast charging and discharging.

4. Environmentally friendly: Stacked batteries typically use lithium-ion batteries, which have a lower environmental impact than traditional lead-acid and nickel-cadmium batteries.

5. Equipped with advanced safety features to ensure reliable and worry-free operation. Our batteries feature built-in overcharge, overheating and short circuit protection, giving consumers and businesses alike peace of mind.

Product Parameters

Model	BH-5KW	BH-10KW	BH-15KW	BH-20KW	BH-25KW	BH-30KW
Nominal Energy (KWh)	5.12	10.24	15.36	20.48	25.6	30.72
Usable Energy (KWh)	4.61	9.22	13.82	18.43	23.04	27.65
Nominal Voltage (V)	51.2
Recommend Charge/Discharge Current (A)	50/50
Max Charge/Discharge Current (A)	100/100
Round-Trip Efficiency	≥97.5%
Communication	CAN, RJ45
Charge Temperature (℃)	0 – 50
Discharge Temperature (℃)	-20-60
Weight (Kg)	55	100	145	190	235	280
Dimension (WHD mm)	650270350	650490350	650710350	650930350	6501150350	6501370350
Module Number	1	2	3	4	5	6
Enclosure Protection Rating	IP54
Recommend DOD	90%
Cycles Life	≥6,000
Design Life	20+ Years (25°C@77°F)
Humidity	5% – 95%
Altitude(m)	<2,000
Installation	Stackable
Warranty	5 Years
Safety Standard	UL1973/IEC62619/UN38.3

Application

1. Electric vehicles: The high energy density and fast charging/discharging characteristics of stacked batteries make them widely used in electric vehicles.
2. medical equipment: the long life and stability of stacked batteries make them suitable for medical equipment, such as pacemakers, hearing aids, etc.
3. Aerospace: The high energy density and fast charging/discharging characteristics of stacked batteries make them suitable for aerospace applications, such as satellites and drones.

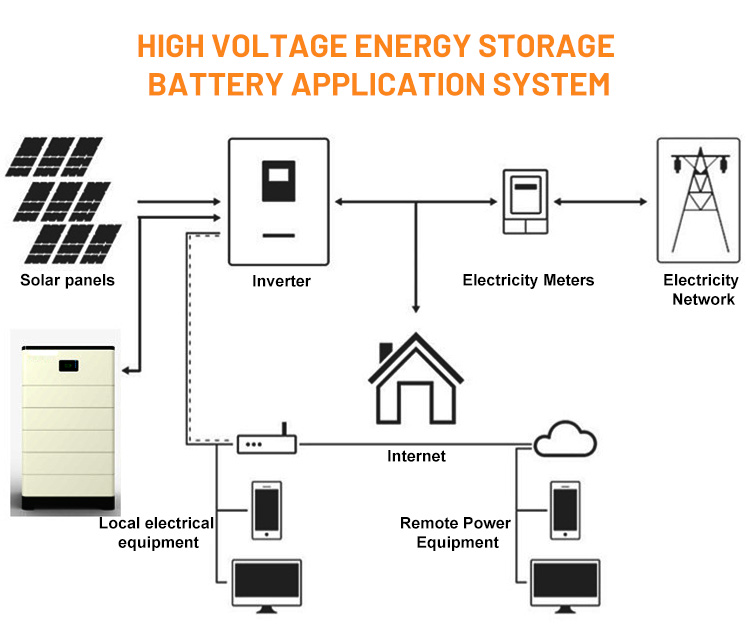

4. Renewable energy storage: stacked batteries can be used to store renewable energy sources such as solar energy and wind energy to achieve effective use of energy.
