Product Introduction
Wall mounted battery is a special type of energy storage battery designed to be used on a wall, hence the name. This cutting-edge battery is designed to store energy from solar panels, allowing users to maximize energy use and reduce dependence on the grid.These batteries are not only suitable for industrial and solar energy storage, but are also commonly used in offices and small businesses as an uninterruptible power supply (UPS).
Product Parameters
Model
|
LFP48-100
|
LFP48-150
|
LFP48-200
|
Norminal Voltage
|
48V
|
48V
|
48V
|
Nomrinal Capacity
|
100AH
|
150AH
|
200AH
|
Norminal Energy
|
5KWH
|
7.5KWH
|
10KWH
|
Charge Voltage Range
|
52.5-54.75V
|
||
Dicharge Voltage Range
|
37.5-54.75V
|
||
Charge Current
|
50A
|
50A
|
50A
|
Max Discharge Current
|
100A
|
100A
|
100A
|
Design Life
|
20Years
|
20years
|
20years
|
Weight
|
55KGS
|
70KGS
|
90KGS
|
BMS
|
built-in BMS
|
built-in BMS
|
built-in BMS
|
Communication
|
CAN/RS-485/RS-232
|
CAN/RS-485/RS-232
|
CAN/RS-485/RS-232
|

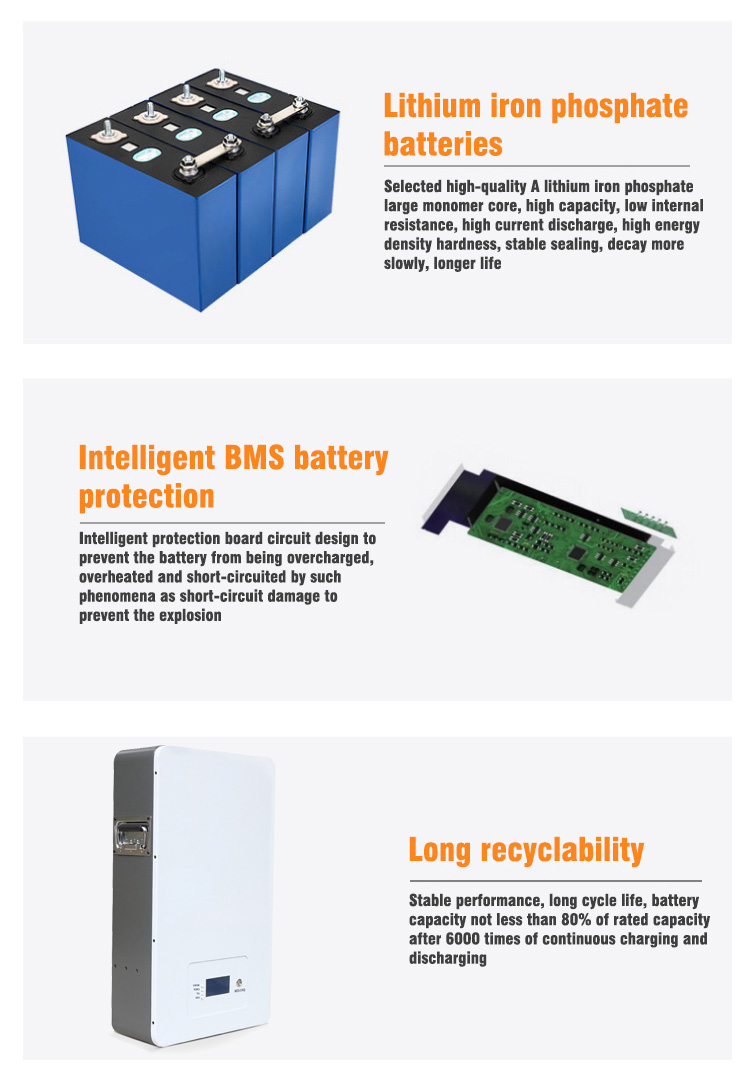

Features
1. Slim and lightweight: with its lightweight design and a variety of colours, the wall-mounted battery is suitable for hanging on the wall without taking up too much space, and at the same time adds a sense of modernity to the indoor environment.
2. Powerful capacity: despite the slim design, the capacity of wall mounted batteries is not to be underestimated, and can meet the power needs of a variety of devices.

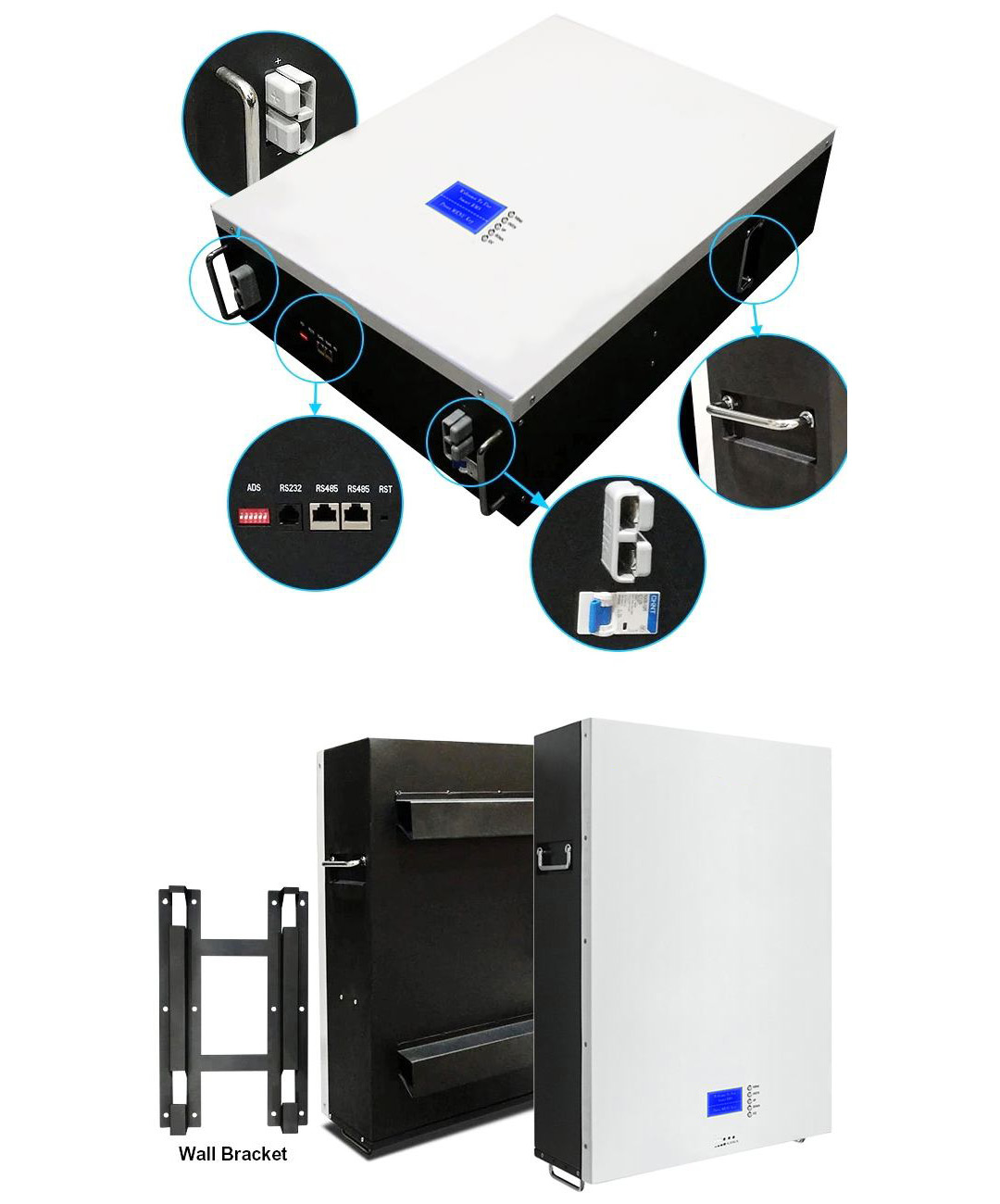

3. Comprehensive functions: wall-mounted batteries are usually equipped with handles and side sockets, which are easy to install and use, and also integrate various functions, such as automatic battery management.
4. Uses lithium-ion technology to deliver high energy density and long life, ensuring users can rely on its performance for years to come.
5. Equipped with smart software that seamlessly integrates with solar panels and automatically optimizes energy storage to maximize the benefits of renewable energy.

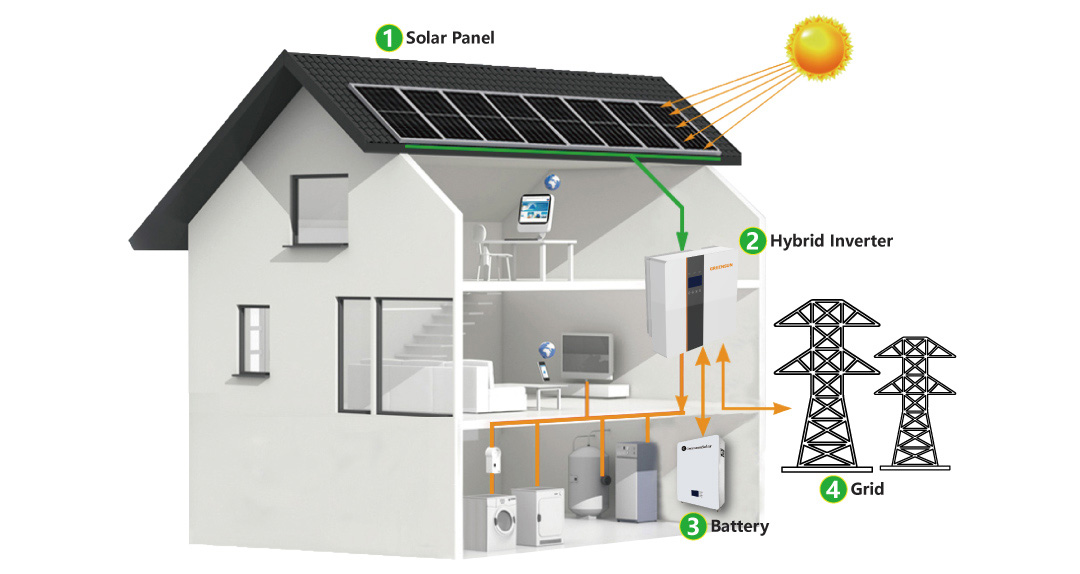

How to Work

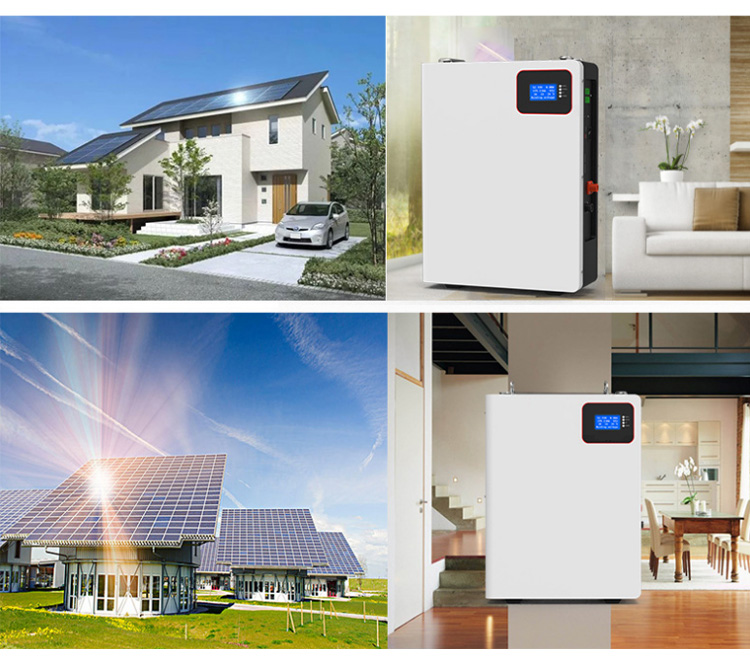

Applications
1. Industrial applications: In the industrial field, wall-mounted batteries can provide a continuous and stable power supply to ensure the normal operation of production equipment.
2. Solar energy storage: Wall-mounted batteries can be used in conjunction with solar panels to convert solar energy into electricity and store it to provide power for areas without grid coverage.
3. Home and office applications: In home and office environments, wall-mounted batteries can be used as a UPS to ensure that critical equipment such as computers, routers, etc. can continue to operate in the event of a power outage.
4. Small Switching Stations and Substations: Wall mounted batteries are also suitable for small switching stations and substations to provide stable and reliable power support for these systems.
Packing & Delivery

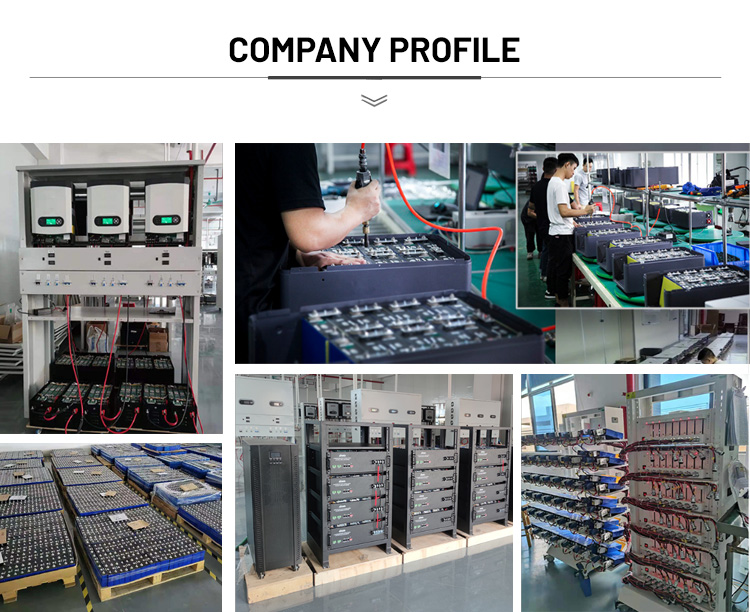

Company Profile
