10kw Hybrid Solar Inverter DC to AC Inverter
Product Introduction
Hybrid inverter is a device that combines the functions of a grid-connected inverter and an off-grid inverter, which can either operate independently in a solar power system or be integrated into a large power grid. Hybrid inverters can be flexibly switched between operating modes according to actual requirements, achieving optimal energy efficiency and performance.
Product Parameters
|
Model
|
BH-8K-SG04LP3
|
BH-10K-SG04LP3
|
BH-12K-SG04LP3
|
|
Battery Input Data
|
|||
|
Battery Type
|
Lead-acid or Lithium-ion
|
||
|
Battery Voltage Range(V)
|
40~60V
|
||
|
Max. Charging Current (A)
|
190A
|
210A
|
240A
|
|
Max. Discharging Current (A)
|
190A
|
210A
|
240A
|
|
Charging Curve
|
3 Stages / Equalization
|
||
|
External Temperature Sensor
|
Optional
|
||
|
Charging Strategy for Li-Ion Battery
|
Self-adaption to BMS
|
||
|
PV String Input Data
|
|||
|
Max. DC Input Power (W)
|
10400W
|
13000W
|
15600W
|
|
PV Input Voltage (V)
|
550V (160V~800V)
|
||
|
MPPT Range (V)
|
200V-650V
|
||
|
Start-up Voltage (V)
|
160V
|
||
|
PV Input Current (A)
|
13A+13A
|
26A+13A
|
26A+13A
|
|
No.of MPPT Trackers
|
2
|
||
|
No.of Strings Per MPPT Tracker
|
1+1
|
2+1
|
2+1
|
|
AC Output Data
|
|||
|
Rated AC Output and UPS Power (W)
|
8000W
|
10000W
|
12000W
|
|
Max. AC Output Power (W)
|
8800W
|
11000W
|
13200W
|
|
Peak Power (off grid)
|
2 times of rated power, 10 S
|
||
|
AC Output Rated Current (A)
|
12A
|
15A
|
18A
|
|
Max. AC Current (A)
|
18A
|
23A
|
27A
|
|
Max. Continuous AC Passthrough (A)
|
50A
|
50A
|
50A
|
|
Output Frequency and Voltage
|
50 / 60Hz; 400Vac (three phase)
|
||
|
Grid Type
|
Three Phase
|
||
|
Current Harmonic Distortion
|
THD<3% (Linear load<1.5%)
|
||
|
Efficiency
|
|||
|
Max. Efficiency
|
97.60%
|
||
|
Euro Efficiency
|
97.00%
|
||
|
MPPT Efficiency
|
99.90%
|
||
Features
1. Good compatibility: The hybrid inverter can be adapted to different operation modes, such as grid-connected mode and off-grid mode, so as to better meet the needs in different scenarios.
2. High reliability: Since the hybrid inverter has both grid-connected and off-grid modes, it can ensure the stable operation of the system in case of grid failure or power outage.
3. High efficiency: The hybrid inverter adopts efficient multi-mode control algorithm, which can achieve high efficiency operation in different operation modes.
4. Highly scalable: The hybrid inverter can be easily expanded into multiple inverters operating in parallel to support larger power demands.

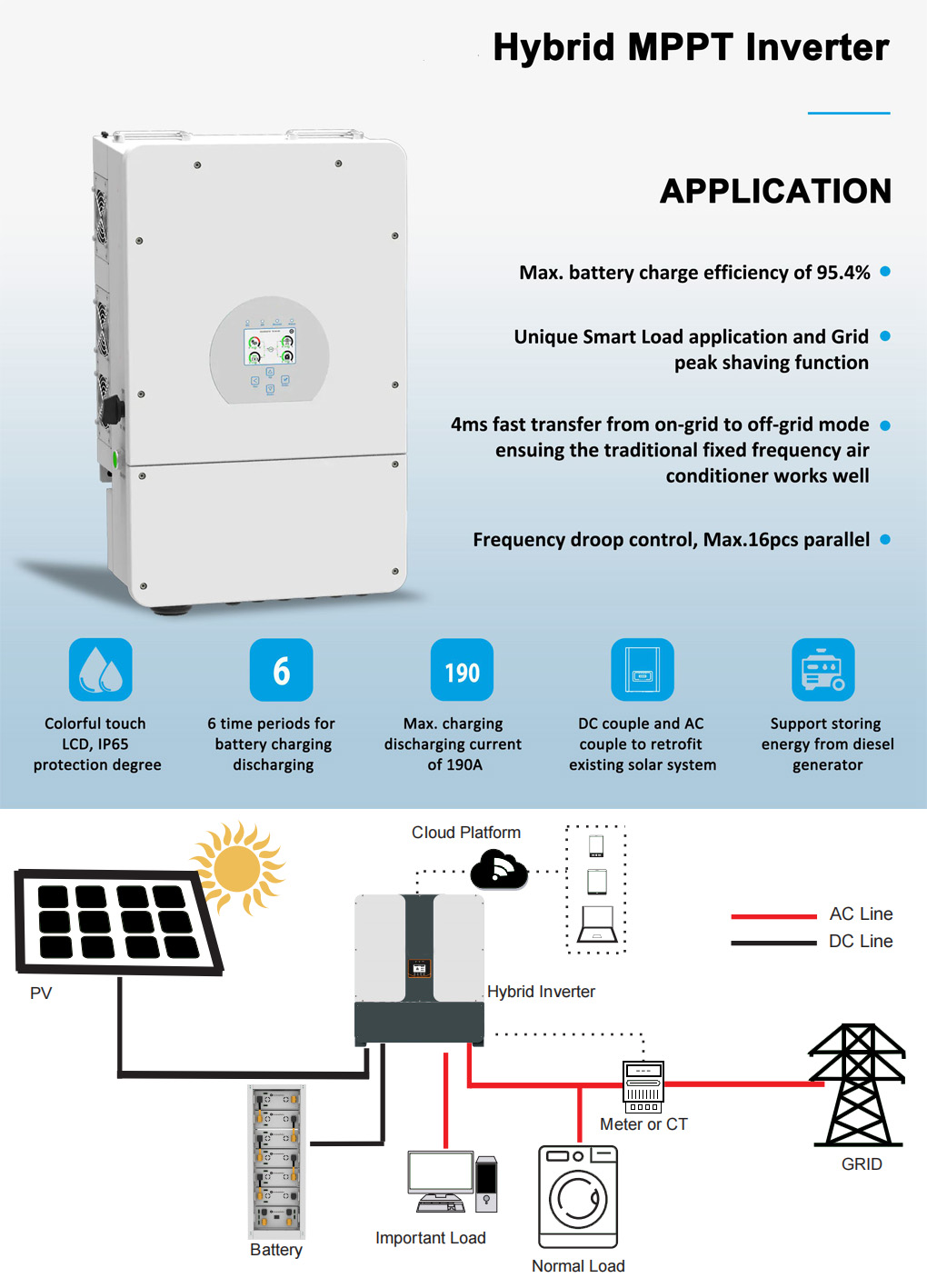

Application
Hybrid inverters are ideal for residential and commercial installations, providing a versatile solution for energy independence and cost savings. Residential users can reduce their electricity bills by using solar energy during the day and stored energy at night, while commercial users can optimize their energy usage and reduce their carbon footprint. Additionally, our hybrid inverters are compatible with a variety of battery technologies, allowing users to tailor their energy storage solutions to meet their specific needs.
